BCR10CM-16LH Triac

BCR10CM-16LH Description

BCR10CM-16LH 800V - 10A - Triac Medium Power Use .

BCR10CM-16LH Features

* IT (RMS) : 10 A
* VDRM : 800 V
* IFGTI, IRGTI, IRGT III: 50 mA or 35 mA(IGT item:1) Data Sheet R07DS0320EJ0300 Rev.3.00 Feb. 1, 2019
* Tj: 150°C
* Planar Passivation Type
* High Commutation Outline RENESAS Package code: PRSS0004AG-A (Package name:

BCR10CM-16LH Applications

* Maximum Ratings Parameter Repetitive peak off-state voltageNote1 Non-repetitive peak off-state voltageNote1 Symbol VDRM VDSM Voltage class 16 800 960 Unit V V Parameter RMS on-state current Surge on-state current I2t for fusion Peak gate power dissipation Average gate power dissipation Peak g

📥 Download Datasheet

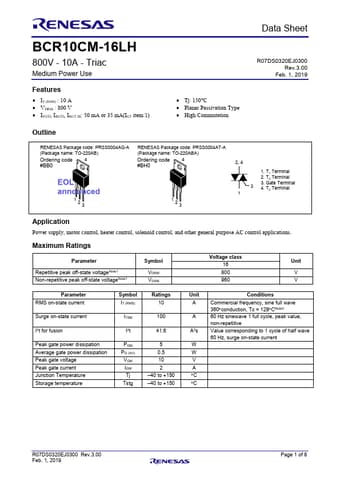

Preview of BCR10CM-16LH PDF
datasheet Preview Page 2 datasheet Preview Page 3
