BCR10CS-12LB Triac

BCR10CS-12LB Description

BCR10CS-12LB Triac Medium Power Use Preliminary Datasheet R07DS0224EJ0400 (Previous: REJ03G0469-0300) Rev.4.00 Dec 14, 2010 .

BCR10CS-12LB Features

* IT (RMS) : 10 A
* VDRM : 600 V
* IFGTI, IRGTI, IRGT III : 30 mA (20 mA)Note6 Outline
* The product guaranteed maximum junction temperature of 150°C
* Non-Insulated Type
* Planar Passivation Type RENESAS Package code: PRSS0004AE-B (Package name: LDPAK(S)-(1) ) 4 123 RENES

BCR10CS-12LB Applications

* Contactless AC switch, light dimmer, electronic flasher unit, control of household equipment such as TV sets, stereo systems, refrigerator, washing machine, infrared kotatsu, carpet, electric fan, solenoid driver, small motor control, solid state relay, copying machine, electric tool, electric heate

📥 Download Datasheet

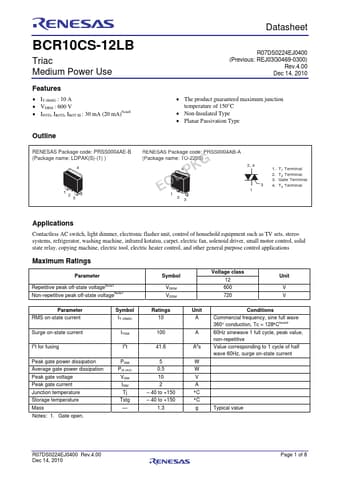

Preview of BCR10CS-12LB PDF
