BCR10CM-12LB Triac

BCR10CM-12LB Description

BCR10CM-12LB 600V - 10A - Triac Medium Power Use .

BCR10CM-12LB Features

* IT (RMS) : 10 A
* VDRM : 600 V
* IFGTI, IRGTI, IRGT III: 30 mA (20 mA) Note6 Data Sheet R07DS1029EJ0500 Rev.5.00 Jun. 28, 2018
* Tj: 150°C
* Non-insulated Type
* Planar Passivation Type Outline RENESAS Package code: PRSS0004AG-A (Package name: TO-

BCR10CM-12LB Applications

* Maximum Ratings Parameter Repetitive peak off-state voltageNote1 Non-repetitive peak off-state voltageNote1 Symbol VDRM VDSM Voltage class 12 600 720 Unit V V Parameter RMS on-state current Surge on-state current I2t for fusion Peak gate power dissipation Average gate power dissipation Peak g

📥 Download Datasheet

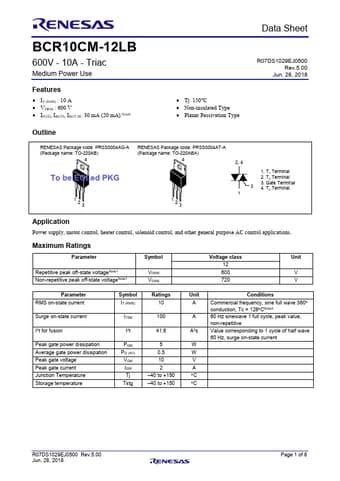

Preview of BCR10CM-12LB PDF
datasheet Preview Page 2 datasheet Preview Page 3
