RS8654 - High-Voltage Operational Amplifier

Name: RS8654
SKU: RS8654-1587133

RUNIC

📥 Download Datasheet

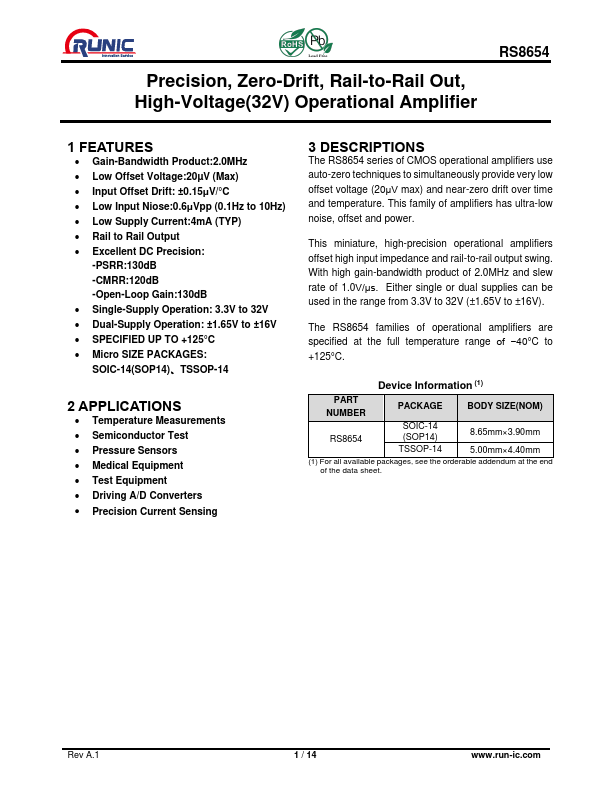

RS8654 Datasheet Preview — Preview of RS8654 PDF

Datasheet Details

Part number	RS8654
Manufacturer	RUNIC
File Size	374.12 KB
Description	High-Voltage Operational Amplifier
Datasheet	RS8654-RUNIC.pdf

RS8654 Product details

Description

The RS8654 series of CMOS operational amplifiers use auto-zero techniques to simultaneously provide very low offset voltage (20μV max) and near-zero drift over time and temperature.

Features

Gain-Bandwidth Product:2.0MHz.
Low Offset Voltage:20µV (Max).
Input Offset Drift: ±0.15μV/°C.
Low Input Niose:0.6μVpp (0.1Hz to 10Hz).
Low Supply Current:4mA (TYP).
Rail to Rail Output.
Excellent DC Precision: -PSRR:130dB -CMRR:120dB -Open-Loop Gain:130dB.
Single-Supply Operation: 3.3V to 32V.
Dual-Supply Operation: ±1.65V to ±16V.
