RS801M SILICON BRIDGE RECTIFIER

RS801M Description

SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 8.0 Amperes RS801M THRU RS807M .
Rectron Logo UL Logo Year. code (Y:Last digit of year) RS80XM VYWW Week. code (WW:01~52) Part No.

RS801M Features

* Low leakage
* Low forward voltage
* Surge overload rating : 200 amperes peak
* Mounting position: Any
* Ideal for printed circuit boards
* High forward surge current capability MECHANICAL DATA
* Epoxy: Device has UL flammability classification 94V-O
* UL list the re

RS801M Applications

* and actual performance may vary over time. Rectron Inc does not assume any liability arising out of the application or use of any product or circuit. Rectron products are not designed, intended or authorized for use in medical, life-saving implant or other applications intended for life-sustaining o

📥 Download Datasheet

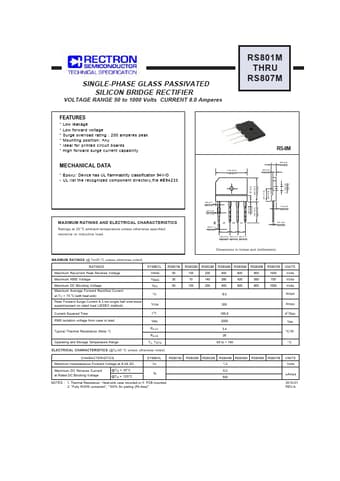

Preview of RS801M PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RS801M
Manufacturer
Rectron
File Size
323.09 KB
Datasheet
RS801M-Rectron.pdf
Description
SILICON BRIDGE RECTIFIER
