RS804M, RS801M SILICON BRIDGE RECTIFIER

RS804M Description

SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 8.0 Amperes RS801M THRU RS807M .
Rectron Logo UL Logo Year. code (Y:Last digit of year) RS80XM VYWW Week. code (WW:01~52) Part No.

RS804M Features

* Low leakage
* Low forward voltage
* Surge overload rating : 200 amperes peak
* Mounting position: Any
* Ideal for printed circuit boards
* High forward surge current capability MECHANICAL DATA
* Epoxy: Device has UL flammability classification 94V-O
* UL list the re

RS804M Applications

* and actual performance may vary over time. Rectron Inc does not assume any liability arising out of the application or use of any product or circuit. Rectron products are not designed, intended or authorized for use in medical, life-saving implant or other applications intended for life-sustaining o

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RS804M, RS801M. Please refer to the document for exact specifications by model.

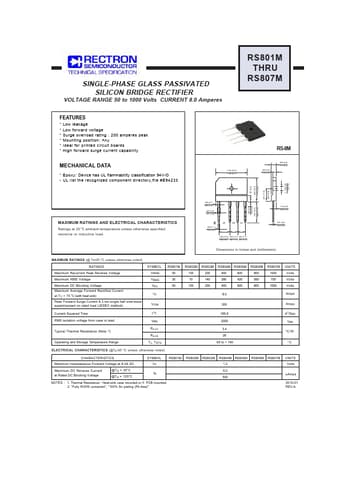

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RS804M, RS801M
Manufacturer
Rectron
File Size
323.09 KB
Datasheet
RS801M-Rectron.pdf
Description
SILICON BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: RS804M, RS801M.
Please refer to the document for exact specifications by model.
