RS8022, RS8021 Rail-to-Rail I/O CMOS Operational Amplifier

RS8022 Description

RS8021, RS8022, RS8024 5kHz, 400nA, Rail-to-Rail I/O CMOS Operational Amplifier .
The RS8021, RS8022, RS8024, families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consu.

RS8022 Features

* GAIN BANDWIDTH:5kHz
* RAIL-TO-RAIL INPUT AND OUTPUT 0.5mV Typical Vos
* INPUT VOLTAGE RANGE: -0.1V to +5.6V with Vs = 5.5V
* SUPPLY RANGE: +1.4V to +5.5V
* SPECIFIED UP TO +125°C

RS8022 Applications

* SENSORS
* PHOTODIODE AMPLIFICATION
* WEARABLE PRODUCTS
* TEMPERATURE MEASUREMENT

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RS8022, RS8021. Please refer to the document for exact specifications by model.

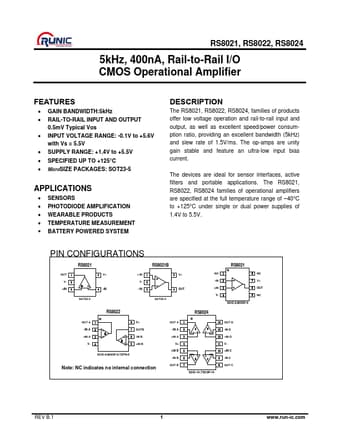

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RS8022, RS8021
Manufacturer
RUNIC
File Size
968.92 KB
Datasheet
RS8021-RUNIC.pdf
Description
Rail-to-Rail I/O CMOS Operational Amplifier
Note
This datasheet PDF includes multiple part numbers: RS8022, RS8021.
Please refer to the document for exact specifications by model.
