RS8651 - High-Voltage Operational Amplifier

Name: RS8651
SKU: RS8651-1587142

RUNIC

📥 Download Datasheet

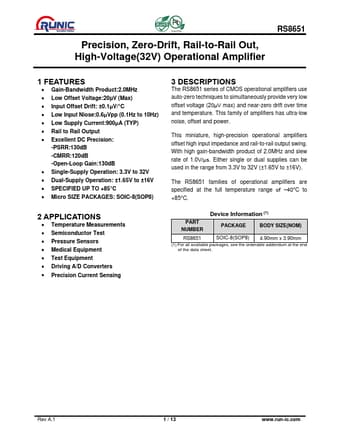

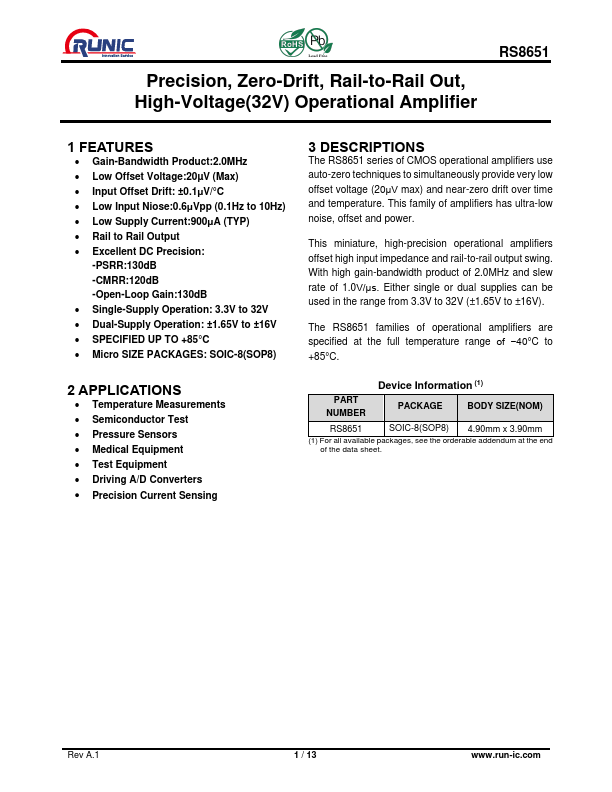

RS8651 Datasheet Preview — Preview of RS8651 PDF

Datasheet Details

Part number	RS8651
Manufacturer	RUNIC
File Size	353.72 KB
Description	High-Voltage Operational Amplifier
Datasheet	RS8651-RUNIC.pdf

RS8651 Product details

Description

The RS8651 series of CMOS operational amplifiers use auto-zero techniques to simultaneously provide very low offset voltage (20μV max) and near-zero drift over time and temperature.

Features

Gain-Bandwidth Product:2.0MHz.
Low Offset Voltage:20µV (Max).
Input Offset Drift: ±0.1μV/°C.
Low Input Niose:0.6μVpp (0.1Hz to 10Hz).
Low Supply Current:900μA (TYP).
Rail to Rail Output.
Excellent DC Precision: -PSRR:130dB -CMRR:120dB -Open-Loop Gain:130dB.
Single-Supply Operation: 3.3V to 32V.
Dual-Supply Operation: ±1.65V to ±16V.
