RF3189 QUAD-BAND GSM/EDGE/GSM850/EGSM900/DCS/PCS/POWER AMPLIFIER MODULE

RF3189 Description

RF3189 QUAD-BAND GSM/EDGE/GSM850/EGSM900 /DCS/PCS/POWER AMPLIFIER MODULE Package Style: Module (5.00mmx5.00mmx1.00mm) DCS RFIN 1 10 DCS RFOUT Featu.
The RF3189 is a high power, high linearity performance in EDGE mode, dual-mode amplifier module with integrated power control.

RF3189 Features

* Linear EDGE and GSM Operation
* High Gain for use in Systems with Low RF Driver Power
* Typical GMSK Efficiency GSM850/900 48/53% DCS/PCS 50/53%
* Auto VBATT Tracking Circuit avoids Switching Transients at Low Supply Voltage
* Low Power Mode for Reduced EDGE Current
* Digit

RF3189 Applications

* Quad-Band GSM/EDGE Handsets
* GSM/EDGE Transmitter Line-ups
* Portable Battery-Powered Equipment
* GSM850/EGSM900/DCS/ PCS Products
* GPRS Class 12 Compatible Products
* Mobile EDGE/GPRS Data Products BAND SEL 2 TX EN 3 VBATT 4 VMODE 5 VRAMP / VBIAS 6 GSM RFIN 7 GND 8 Int

📥 Download Datasheet

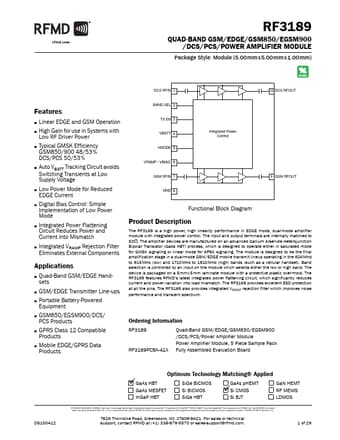

Preview of RF3189 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RF3189
Manufacturer
RFMD
File Size
738.54 KB
Datasheet
RF3189-RFMD.pdf
Description
QUAD-BAND GSM/EDGE/GSM850/EGSM900/DCS/PCS/POWER AMPLIFIER MODULE
