RF3166 - POWER AMPLIFIER MODULE

RF Micro Devices

The RF3166 by RF Micro Devices is a POWER AMPLIFIER MODULE. Below is the official datasheet preview.

📥 Download Datasheet

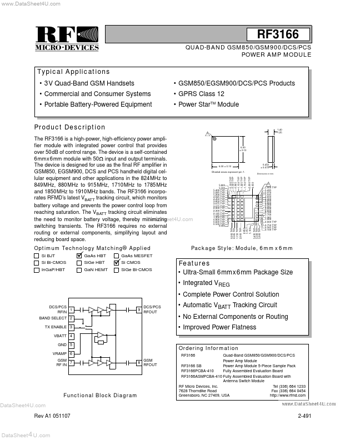

RF3166 POWER AMPLIFIER MODULE by RF Micro Devices - Datasheet Preview — Official preview page of the **RF3166** POWER AMPLIFIER MODULE datasheet (RF Micro Devices).

Datasheet Details

Part number	RF3166
Manufacturer	RF Micro Devices
File Size	461.68 KB
Description	POWER AMPLIFIER MODULE
Datasheet	RF3166_RFMicroDevices.pdf
Additional preview pages of the RF3166 datasheet.

RF3166 Product details

Description

1 QUAD-BAND GSM850/GSM900/DCS/PCS POWER AMP MODULE GSM850/EGSM900/DCS/PCS Products GPRS Class 12 Power StarTM Module 1.40 1.25 The RF3166 is a high-power, high-efficiency power amplifier module with integrated power control that provides over 50dB of control range.The device is a self-contained 6mmx6mm module with 50 Ω input and output terminals.The device is designed for use as the final RF amplifier in GSM850, EGSM900, DCS and PCS handheld digital cellular e

Features

Ultra-Small 6mmx6mm Package Size.
Integrated VREG.
Complete Power Control Solution.
Automatic VBATT Tracking Circuit.
No External Components or Routing.
Improved Power Flatness Ordering Information DCS/PCS 1 RFIN BAND SELECT 2 TX ENABLE 3 VBATT 4 GND 5 VRAMP 6 GSM 7 RF IN 9 DCS/PCS RFOUT 8 GSM RFOUT Functional Block Diagram Quad-Band GSM850/GSM900/DCS/PCS Power Amp Module RF3166 SB Power Amp Module 5-Piece Sample Pack RF3166PCBA-410 F.
