RF3163 - 3V 900MHZ LINEAR POWER AMPLIFIER MODULE

RF Micro Devices

The RF3163 by RF Micro Devices is a 3V 900MHZ LINEAR POWER AMPLIFIER MODULE. Below is the official datasheet preview.

📥 Download Datasheet

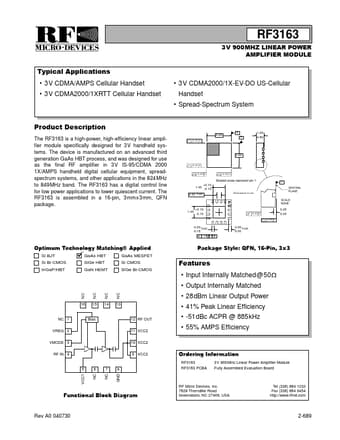

RF3163 3V 900MHZ LINEAR POWER AMPLIFIER MODULE by RF Micro Devices - Datasheet Preview — Official preview page of the **RF3163** 3V 900MHZ LINEAR POWER AMPLIFIER MODULE datasheet (RF Micro Devices).

Datasheet Details

Part number	RF3163
Manufacturer	RF Micro Devices
File Size	79.07 KB
Description	3V 900MHZ LINEAR POWER AMPLIFIER MODULE
Datasheet	RF3163_RFMicroDevices.pdf
Additional preview pages of the RF3163 datasheet.

RF3163 Product details

Description

3.00 3V 900MHZ LINEAR POWER AMPLIFIER MODULE -A-B- The RF3163 is a high-power, high-efficiency linear amplifier module specifically designed for 3V handheld systems.The device is manufactured on an advanced third generation GaAs HBT process, and was designed for use as the final RF amplifier in 3V IS-95/CDMA 2000 1X/AMPS handheld digital cellular equipment, spreadspectrum systems, and other applications in the 824MHz to 849MHz band.The RF3163 has a digital control line for low power applica

Features

Input Internally Matched@50 Ω.
Output Internally Matched.
28dBm Linear Output Power.
41% Peak Linear Efficiency.
-51dBc ACPR @ 885kHz.
55% AMPS Efficiency NC NC 14 16 15 NC 13 NC 1 VREG 2 VMODE 3 RF IN 4 Bias NC 12 RF OUT 11 VCC2 10 VCC2 9 VCC2 Ordering Information RF3163 RF3163 PCBA 3V 900MHz Linear Power Amplifier Module Fully Assembled Evaluation Board 5 VCC1 6 NC 7 NC 8 GND Functional Block Diagram RF Micro Devices, Inc.
