RF3164 - 3V 1900MHz LINEAR POWER AMPLIFIER MODULE

RF Micro Devices

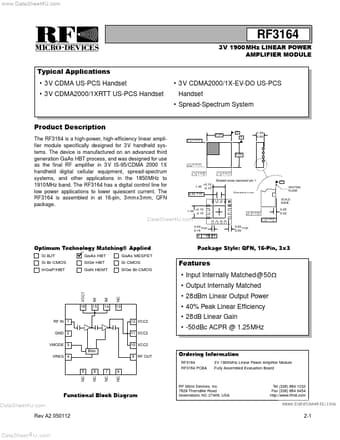

The RF3164 by RF Micro Devices is a 3V 1900MHz LINEAR POWER AMPLIFIER MODULE. Below is the official datasheet preview.

📥 Download Datasheet

RF3164 3V 1900MHz LINEAR POWER AMPLIFIER MODULE by RF Micro Devices - Datasheet Preview — Official preview page of the **RF3164** 3V 1900MHz LINEAR POWER AMPLIFIER MODULE datasheet (RF Micro Devices).

Datasheet Details

Part number	RF3164
Manufacturer	RF Micro Devices
File Size	301.84 KB
Description	3V 1900MHz LINEAR POWER AMPLIFIER MODULE
Datasheet	RF3164_RFMicroDevices.pdf
Additional preview pages of the RF3164 datasheet.

RF3164 Product details

Description

3.00 3V 1900MHz LINEAR POWER AMPLIFIER MODULE -A-B- The RF3164 is a high-power, high-efficiency linear amplifier module specifically designed for 3V handheld systems.The device is manufactured on an advanced third generation GaAs HBT process, and was designed for use as the final RF amplifier in 3V IS-95/CDMA 2000 1X handheld digital cellular equipment, spread-spectrum systems, and other applications in the 1850MHz to 1910MHz band.The RF3164 has a digital control line for low power applicat

Features

Input Internally Matched@50 Ω.
Output Internally Matched.
28dBm Linear Output Power.
40% Peak Linear Efficiency.
28dB Linear Gain.
-50dBc ACPR @ 1.25MHz VCC1 16 15 14 13 RF IN 1 GND 2 VMODE 3 Bias VREG 4 NC IM IM 12 VCC2 11 VCC2 10 VCC2 9 RF OUT Ordering Information RF3164 RF3164 PCBA 3V 1900MHz Linear Power Amplifier Module Fully Assembled Evaluation Board 5 NC 6 NC 7 NC 8 NC Functional Block Diagram RF Micro Devices, Inc.
