RF3161 - QUAD-BAND GSM850/GSM900/DCS/PCS POWER AMP MODULE

RF Micro Devices

The RF3161 by RF Micro Devices is a QUAD-BAND GSM850/GSM900/DCS/PCS POWER AMP MODULE. Below is the official datasheet preview.

Datasheet Details

Part number	RF3161
Manufacturer	RF Micro Devices
File Size	127.17 KB
Description	QUAD-BAND GSM850/GSM900/DCS/PCS POWER AMP MODULE
Datasheet	RF3161_RFMicroDevices.pdf

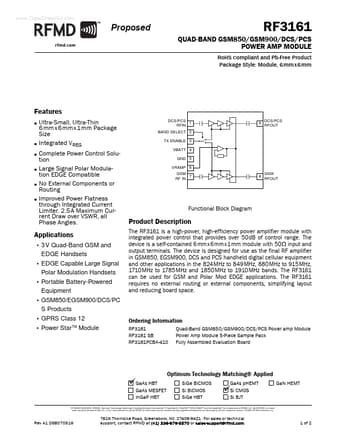

Additional preview pages of the RF3161 datasheet.

The RF3161 is a high-power, high-efficiency power amplifier module with integrated power control that provides over 50dB of control range.

Ultra-Small, Ultra-Thin 6mmx6mmx1mm Package Size Integrated VREG Complete Power Control Solution Large Signal Polar Modulation EDGE Compatible No External Components or Routing Improved Power Flatness through Integrated Current Limiter. 2.5A Maximum Current Draw over VSWR, all Phase Angles. DCS/PCS 1 RFIN BAND SELECT 2 TX ENABLE 3 VBATT 4 GND 5 VRAMP 6 GSM 7 RF IN 9 DCS/PCS RFOUT.
8 GSM RFOUT.
Functional Block Diagram Product.
