RF3145 QUAD-BAND GSM/EDGE/GSM850/DCS/PCS POWER AMPLIFIER MODULE

RF3145 Description

www.DataSheet4U.com RF3145 0 Typical Applications * 3V Dual/Triple/Quad-Band Mode Handsets * Commercial and Consumer Systems .
The RF3145 is a high power, high efficiency power amplifier module with integrated power control.

RF3145 Features

* Integrated Power Control & Band Select
* Single 3.0V to 4.8V Supply Voltage SiGe Bi-CMOS NC
* +35.0dBm GSM Output Pwr at 3.5V
* +33dBm DCS/PCS Output Pwr at 3.5V 11 DCS OUT 12 DCS IN 1 BAND SELECT 2 TX ENABLE 3 VBATT 4 VMODE 5 VRAMP 6 GSM IN 7 8 NC 9 GSM OUT 10

RF3145 Applications

* 3V Dual/Triple/Quad-Band Mode Handsets
* Commercial and Consumer Systems
* Portable Battery-Powered Equipment

📥 Download Datasheet

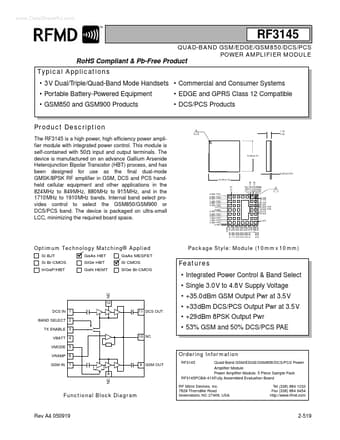

Preview of RF3145 PDF
