LC420EUG-RDV2 - WUXGA TFT LCD

RAKEN

📥 Download Datasheet

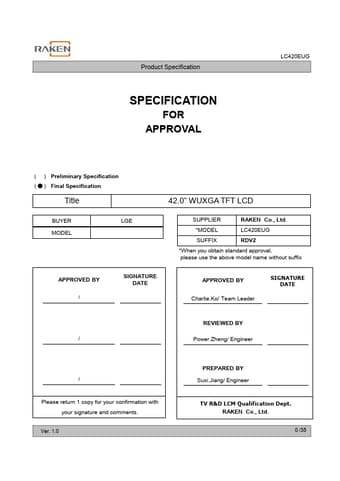

LC420EUG-RDV2 Datasheet Preview — Preview of LC420EUG-RDV2 PDF

Datasheet Details

Part number	LC420EUG-RDV2
Manufacturer	RAKEN
File Size	910.85 KB
Description	WUXGA TFT LCD
Datasheet	LC420EUG-RDV2-RAKEN.pdf

LC420EUG-RDV2 Product details

Description

ITEM ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS DATA MAPPING AND TIMING Color Data Reference POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS ENVIRONMENT PRECAUTIONS MOUNTING PRECAUTIONS OPERATING PRECAUTIONS ELECTROSTATIC DISCHARGE CONTROL PRECAUTIONS FOR STRONG LIGHT EXPOSURE STORAGE HANDLING PRECAUTIONS FOR PROTECTION FILM Ver.1.0 LC420E

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle (CR>10) Power Consumption Weight Display Operating Mode Surface Treatment 42.02 inches(1067.31mm) diagonal 968.4(H) × 564(V) X 10.8(B)/18.3 mm(D) (Typ. ) 0.4845 mm x 0.4845 mm 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement 8bit, 16,7 M colors 360 cd/m2 (Center 1point ,Typ. ) Viewing angle free ( R/L 178 (Min. ), U/D 178 (Min. )) Total 92.9W (TBD. ) [Logic= 7.3W, LED Backlight=85.6W (Ext.
