LC420DUG-JFR1 - Display Module

RAKEN

📥 Download Datasheet

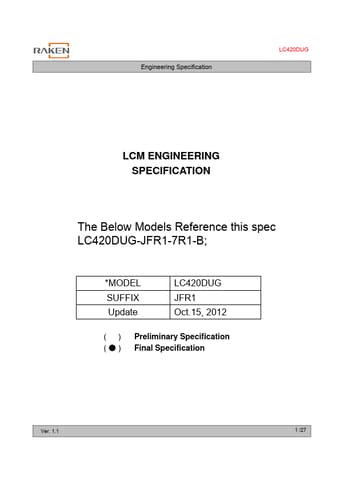

LC420DUG-JFR1 Datasheet Preview — Preview of LC420DUG-JFR1 PDF

Datasheet Details

Part number	LC420DUG-JFR1
Manufacturer	RAKEN
File Size	1.60 MB
Description	Display Module
Datasheet	LC420DUG-JFR1-RAKEN.pdf

LC420DUG-JFR1 Product details

Description

CONTENTS ITEM ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS Panel Pixel Structure POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY ENVIRONMENT PRECAUTIONS MOUNTING PRECAUTIONS OPERATING PRECAUTIONS ELECTROSTATIC DISCHARGE CONTROL PRECAUTIONS FOR STRONG LIGHT EXPOSURE STORAGE LC420DUG Page 1 2 3 4 5 6 6 9 12 13 14 15 21 22 23 23 23 24 24 24 25

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle (CR>10) Power Consumption Weight Display Mode Surface Treatment 41.92 inches(1067.31mm) diagonal 955.8(H) X 554.4(V) X 35.0(B) mm (Typ. ) 0.4833 mm x 0.4833 mm 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement 8bit, 16.7 Million colors 300 cd/m2 (Center 1point ,Typ. ) Viewing angle free ( R/L 178 (Min. ), U/D 178 (Min. )) Total 54.45W [Logic= 6.0W, LED Driver=48.45W (IF_cathode=380mA)) 6.
