LC420EUD-SCA2 - TFT LCD Module

📥 Download Datasheet

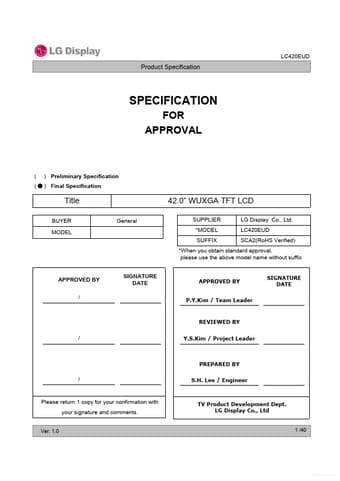

LC420EUD-SCA2 Datasheet Preview — Preview of LC420EUD-SCA2 PDF

Datasheet Details

Part number	LC420EUD-SCA2
Manufacturer	LG
File Size	1.03 MB
Description	TFT LCD Module
Datasheet	LC420EUD-SCA2-LG.pdf

LC420EUD-SCA2 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS LVDS SIGNAL SPECIFICATIONS COLOR DATA REFERENCE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC Environment PACKING INFORMATION OF LCM LABEL PACKING FORM PRECAUTIONS MOUNTING PRECAUTIONS OPERATING PRECAUTIONS ELECTROSTATIC DISCHARGE CONTROL PRECAUTIONS FOR STRONG LIGHT EXPOSURE STORAGE HANDLING PRECAUTIONS

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle (CR>10) Power Consumption Weight Display Mode Surface Treatment Ver. 1.0 42.02 inches(1067.31mm) diagonal 973.2(H) × 566.2(V) X 10.8(B)/23.6 mm(D) (Typ. ) 0.4845 mm x 0.4845 mm 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement 10bit(D), 1.06Billon colors 450 cd/m2 (Center 1point ,Typ. ) Viewing angle free ( R/L 178 (Min. ), U/D 178 (Min. )) Total 98W (Typ. ) [Logic= 10W, LED Driver= 88W (Ex.
