LC420EUG-RDA1 - Display Module

RAKEN

📥 Download Datasheet

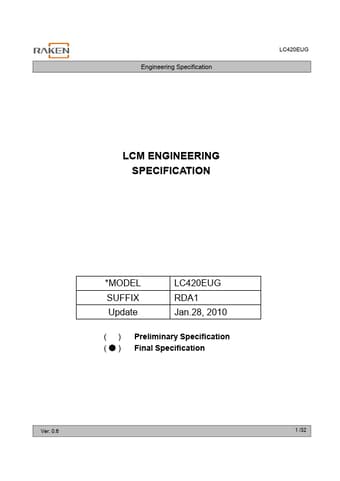

LC420EUG-RDA1 Datasheet Preview — Preview of LC420EUG-RDA1 PDF

Datasheet Details

Part number	LC420EUG-RDA1
Manufacturer	RAKEN
File Size	1.01 MB
Description	Display Module
Datasheet	LC420EUG-RDA1-RAKEN.pdf

LC420EUG-RDA1 Product details

Description

CONTENTS ITEM ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS DATA MAPPING AND TIMING PANEL PIXEL STRUCTURE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS LED Array - SAFETY ENVIRONMENT PRECAUTIONS MOUNTING PRECAUTIONS OPERATING PRECAUTIONS ELECTROSTATIC DISCHARGE CONTROL PRECAUTIONS FOR STRONG LIGHT EXPOSURE STORAGE HANDLING PRECAUTIONS FOR PROTECT

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Drive IC Data Interface Luminance, White Viewing Angle (CR>10) Power Consumption Weight Display Operating Mode Surface Treatment Ver. 0.6 42.02 inches(1067.31mm) diagonal 968.4(H) × 564(V) X 10.8(B)/21.3 mm(D) (Typ. ) 0.4845 mm x 0.4845 mm 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement 8bit, 16,7 M colors (※ 1.06B colors @ 10 bit (D) System Output ) Source D-IC : 8-bit mini-LVDS, gamma reference voltage, and cont.
