PCS3P7101A - Low Power Peak EMI Reducing clock synthesizer

The PCS3P7101A by PulseCore Semiconductor is a Low Power Peak EMI Reducing clock synthesizer. Below is the official datasheet preview.

Datasheet Details

Part number	PCS3P7101A
Manufacturer	PulseCore Semiconductor
File Size	337.38 KB
Description	Low Power Peak EMI Reducing clock synthesizer
Datasheet	PCS3P7101A_PulseCoreSemiconductor.pdf

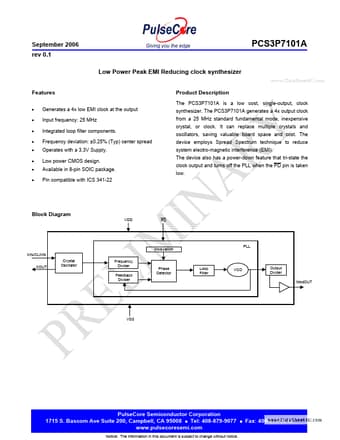

Additional preview pages of the PCS3P7101A datasheet.

The PCS3P7101A is a low cost, single-output, clock synthesizer.

Generates a 4x low EMI clock at the output Input frequency: 25 MHz Integrated loop filter components. Frequency deviation: ±0.25% (Typ) center spread Operates with a 3.3V Supply. Low power CMOS design. Available in 8-pin SOIC package. Pin compatible with ICS 341-22 Product.
