PCB83C552, PCB80C552 - Single-chip 8-bit microcontroller

Philips

📥 Download Datasheet

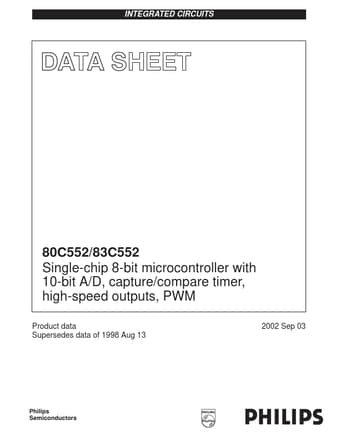

PCB83C552 Datasheet Preview — This datasheet PDF includes multiple part numbers: PCB83C552, PCB80C552. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	PCB83C552, PCB80C552
Manufacturer	Philips
File Size	176.53 KB
Description	Single-chip 8-bit microcontroller
Datasheet	PCB80C552_Philips.pdf
Note	This datasheet PDF includes multiple part numbers: PCB83C552, PCB80C552. Please refer to the document for exact specifications by model.

PCB83C552 Product details

Description

The 80C552/83C552 (hereafter generically referred to as 8XC552) Single-Chip 8-Bit Microcontroller is manufactured in an advanced CMOS process and is a derivative of the 80C51 microcontroller family. 83C552 8 kbytes mask programmable ROM 80C552 ROMless version of the 83C552 87C552 8 kbytes EPROM (described in a separate chapter) The 8XC552 contains a
