PCB-LQFP64 - SMD Adapter Board

Datasheet Details

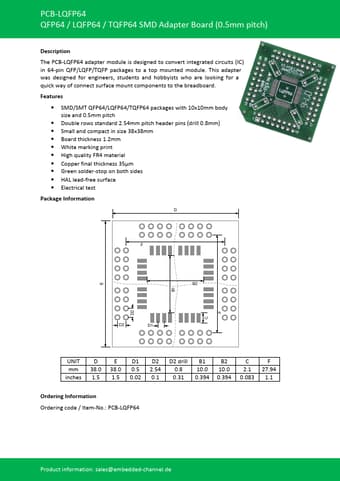

The PCB-LQFP64 adapter module is designed to convert integrated circuits (IC) in 64-pin QFP/LQFP/TQFP packages to a top mounted module.

SMD/SMT QFP64/LQFP64/TQFP64 packages with 10x10mm body size and 0.5mm pitch Double rows standard 2.54mm pitch header pins (drill 0.8mm) Small and compact in size 38x38mm Board thickness 1.2mm White marking print High quality FR4 material Copper final thickness 35µm Green solder-stop on both sides HAL lead-free surface Electrical test Package Information D F E B2 D2 B1 D2 D1 UNIT mm inches D 38.0 1.5 E 38.0 1.5 D1 0.5 0.02 D.
