PCB80C562, PCB83C562 - Single-chip 8-bit microcontroller

Name: PCB80C562
SKU: PCB80C562-1305417

Philips

📥 Download Datasheet

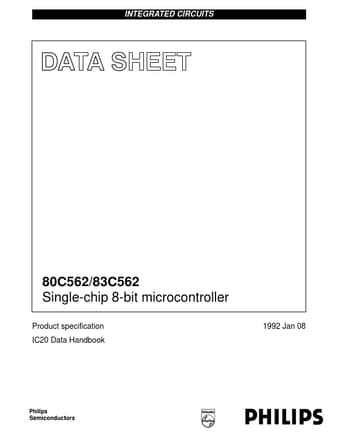

PCB80C562 Datasheet Preview — This datasheet PDF includes multiple part numbers: PCB80C562, PCB83C562. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	PCB80C562, PCB83C562
Manufacturer	Philips
File Size	199.03 KB
Description	Single-chip 8-bit microcontroller
Datasheet	PCB83C562-Philips.pdf
Note	This datasheet PDF includes multiple part numbers: PCB80C562, PCB83C562. Please refer to the document for exact specifications by model.

PCB80C562 Product details

Description

The 80C562/83C562 (hereafter generically referred to as 8XC562) Single-Chip 8-Bit Microcontroller is manufactured in an advanced CMOS process and is a derivative of the 80C51 microcontroller family.

Features

80C51 instruction set.
8k × 8 ROM expandable externally to 64k bytes.
256 × 8 RAM, expandable externally to 64k bytes.
Two standard 16-bit timer/counters.
An additional 16-bit timer/counter coupled to four capture registers and three compare registers.
Capable of producing eight synchronized, timed outputs.
An 8-bit ADC with eight multiplexed analog inputs.
Two 8-bit resolution, pulse width modulated outputs.
Five.
