PCB83C654 - CMOS Single-Chip 8-Bit Microcontroller

NXP

📥 Download Datasheet

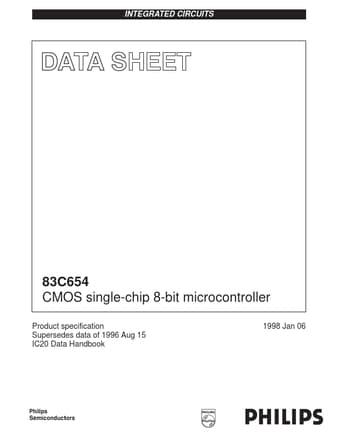

PCB83C654 Datasheet Preview — Preview of PCB83C654 PDF

Datasheet Details

Part number	PCB83C654
Manufacturer	NXP
File Size	257.82 KB
Description	CMOS Single-Chip 8-Bit Microcontroller
Datasheet	PCB83C654_PhilipsSemiconductors.pdf

PCB83C654 Product details

Description

The P83C654 Single-Chip 8-Bit Microcontroller is manufactured in an advanced CMOS process and is a derivative of the 80C51 microcontroller family. 16k bytes mask programmable ROM 87C654 EPROM version (described in a separate data sheet) This device provides architectural enhancements that make it applicable in a variety of applications for general control systems.The 83C654 con

Features

80C51 central processing unit.
16k × 8 ROM expandable externally to 64k bytes.
256 × 8 RAM, expandable externally to 64k bytes.
Two standard 16-bit timer/counters.
Four 8-bit I/O ports.
I2C-bus serial I/O port with byte oriented master and slave functions.
Full-duplex UART facilities.
Power control modes.
Idle mode.
Power-down mode.
ROM code protection.
Extended frequency range: 3.5 to 24.
