PI5USB2544 - USB Charging Port Controller and Detection Power Switch

Name: PI5USB2544
SKU: PI5USB2544-1013576

Pericom Semiconductor

📥 Download Datasheet

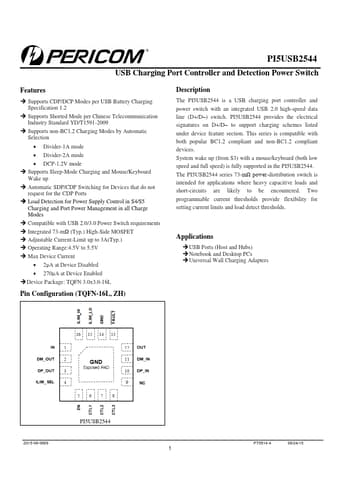

PI5USB2544 Datasheet Preview — Preview of PI5USB2544 PDF

Datasheet Details

Part number	PI5USB2544
Manufacturer	Pericom Semiconductor
File Size	554.78 KB
Description	USB Charging Port Controller and Detection Power Switch
Datasheet	PI5USB2544-PericomSemiconductor.pdf

PI5USB2544 Product details

Description

The PI5USB2544 is a USB charging port controller and power switch with an integrated USB 2.0 high-speed data line (D+/D ) switch. to support charging schemes listed under device feature section.

Features

 Supports CDP/DCP Modes per USB Battery Charging Specification 1.2  Supports Shorted Mode per Chinese Telecommunication Industry Standard YD/T1591-2009  Supports non-BC1.2 Charging Modes by Automatic Selection.
Divider-1A mode.
Divider-2A mode.
DCP-1.2V mode  Supports Sleep-Mode Charging and Mouse/Keyboard Wake up  Automatic SDP/CDP Switching for Devices that do not request for the CDP Ports  Load Detection for Power Supply Control in S4/S5 Charging and Port Power Management.
