PI5USB2546A, PI5USB2544A - USB Charging Port Controller and Load Detection Power Switch

Pericom Semiconductor

📥 Download Datasheet

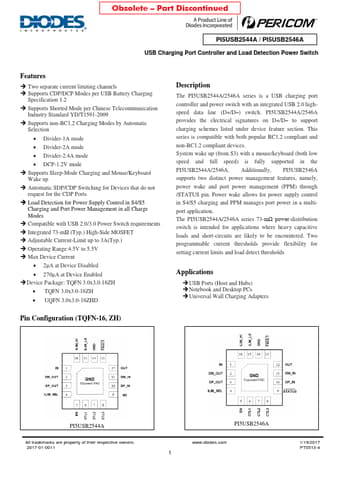

PI5USB2546A Datasheet Preview — This datasheet PDF includes multiple part numbers: PI5USB2546A, PI5USB2544A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	PI5USB2546A, PI5USB2544A
Manufacturer	Pericom Semiconductor
File Size	0.96 MB
Description	USB Charging Port Controller and Load Detection Power Switch
Datasheet	PI5USB2544A-PericomSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: PI5USB2546A, PI5USB2544A. Please refer to the document for exact specifications by model.

PI5USB2546A Product details

Description

The PI5USB2544A/2546A series is a USB charging port controller and power switch with an integrated USB 2.0 highspeed data line (D+/D ) switch. to support charging schemes listed under device feature section.

Features

 Two separate current limiting channels  Supports CDP/DCP Modes per USB Battery Charging Specification 1.2  Supports Shorted Mode per Chinese Telecommunication Industry Standard YD/T1591-2009  Supports non-BC1.2 Charging Modes by Automatic Selection.
Divider-1A mode.
Divider-2A mode.
Divider-2.4A mode.
DCP-1.2V mode  Supports Sleep-Mode Charging and Mouse/Keyboard Wake up  Automatic SDP/CDP Switching for Devices that do not request for the CDP Ports  Load Detection for.
