PI5USB212 - USB 2.0 Signal Conditioner

Features

  • The DIODES PI5USB212 is an USB2.0 Signal conditioner to boost the signals and insert pre-emphasis to compensate the ISI signal loss in the channels before and after the conditioner. Patent-pending Design to maintain stable common mode with symmetrical Boost/Pre-emphasis on D+/D-. The PI5USB212 can be used in USB Host or Device.

📥 Download Datasheet

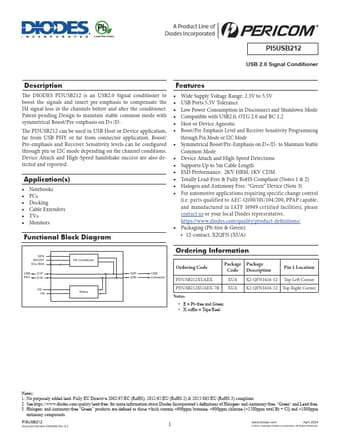

Datasheet preview – PI5USB212

Datasheet Details

Part number PI5USB212
Manufacturer Diodes Incorporated
File Size 682.59 KB
Description USB 2.0 Signal Conditioner
Datasheet download datasheet PI5USB212 Datasheet
Additional preview pages of the PI5USB212 datasheet.

📁 Similar Datasheet

  • PI5USB2058 - USB Power Switch (Pericom Semiconductor)
  • PI5USB2544 - USB Charging Port Controller and Detection Power Switch (Pericom Semiconductor)
  • PI5USB2544A - USB Charging Port Controller and Load Detection Power Switch (Pericom Semiconductor)
  • PI5USB2546A - USB Charging Port Controller and Load Detection Power Switch (Pericom Semiconductor)
  • PI5USB2546Q - USB Charging Port Controller and Load Detection Power Switch (Pericom Semiconductor)
  • PI5USB2549 - USB Charging Port Controller and Load Detection Power Switch (Pericom Semiconductor)
  • PI5USB1458 - USB Host Charger Controller & Non-standard Protocols (Pericom Semiconductor)
  • PI5USB1458A - USB Host Charger Controller & Non-standard Protocols (Pericom Semiconductor)
  • PI5USB1468 - USB Host Charger Controller & Non-standard Protocols (Pericom Semiconductor)
  • PI5USB1468A - USB Host Charger Controller & Non-standard Protocols (Pericom Semiconductor)
Other Datasheets by DIODES
  • PI5USB216Q - Automotive Grade USB 2.0 Signal Conditioner
  • PI5A3157 - Low Voltage Dual SPDT Analog Switch 2:1 Mux/DeMux Bus Switch
  • PI5A3157B - Low Voltage SPDT Analog Switch 2:1 Mux/Demux Bus Switch
  • PI5A3158B - Low Voltage Dual SPDT Analog Switch 2:1 Mux/Demux Bus Switch
  • PI5A3166 - Low Voltage SPST Analog Switch
  • PI5A392A - Precision Wide Bandwidth Quad Analog Switches
  • PI5C3245 - 2-Port Bus Switch

Full PDF Text Transcription

Click to expand full text
Pb Lead-free Green A Product Line of Diodes Incorporated PI5USB212 USB 2.0 Signal Conditioner Description Features The DIODES PI5USB212 is an USB2.0 Signal conditioner to boost the signals and insert pre-emphasis to compensate the ISI signal loss in the channels before and after the conditioner. Patent-pending Design to maintain stable common mode with symmetrical Boost/Pre-emphasis on D+/D-. The PI5USB212 can be used in USB Host or Device application, far from USB PHY or far from connector application. Boost/ Pre-emphasis and Receiver Sensitivity levels can be configured through pin or I2C mode depending on the channel conditions. Device Attach and High-Speed handshake success are also detected and reported.
