PI5C32X384C, PI5C32X384 - 20-Bit 2-Port Bus Switch

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PI5C32X384C, PI5C32X384. Please refer to the document for exact specifications by model.

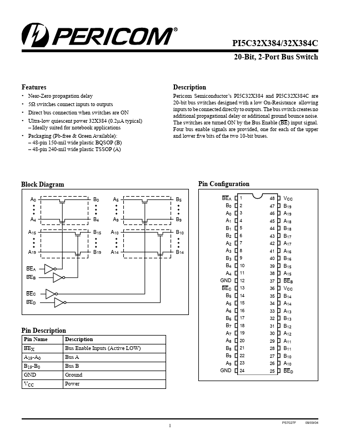

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number PI5C32X384C, PI5C32X384
Manufacturer Pericom Semiconductor
File Size 327.05 KB
Description 20-Bit 2-Port Bus Switch
Datasheet download datasheet PI5C32X384_PericomSemiconductorCorporation.pdf
Note This datasheet PDF includes multiple part numbers: PI5C32X384C, PI5C32X384.
Please refer to the document for exact specifications by model.

PI5C32X384C Product details

Description

Pin Name Description BEX Bus Enable Inputs (Active LOW) A19-A0 Bus A B19-B0 Bus B GND Ground VCC Power PI5C32X384/32X384C 20-Bit, 2-Port Bus Switch Description Pericom Semiconductor’s PI5C32X384 and PI5C32X384C are 20-bit bus switches designed with a low On-Resistance allowing inputs to be connected directly to outputs.The bus switch creates no additional propagational delay or additional ground bounce noise.The switches are turned ON by the Bus Enable (BE) input signal.Four bus en
