PI5C3253 - Dual 4:1 Mux/DeMux Bus Switch

Name: PI5C3253
SKU: PI5C3253-40900

Pericom Semiconductor Corporation

📥 Download Datasheet

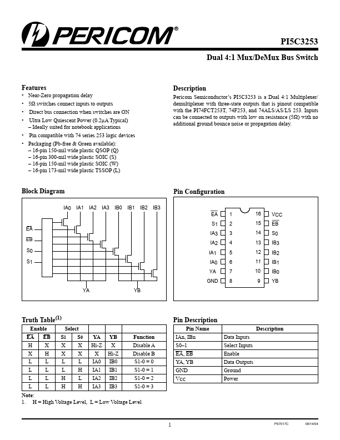

PI5C3253 Datasheet Preview — Preview of PI5C3253 PDF

Datasheet Details

Part number	PI5C3253
Manufacturer	Pericom Semiconductor Corporation
File Size	349.15 KB
Description	Dual 4:1 Mux/DeMux Bus Switch
Datasheet	PI5C3253_PericomSemiconductorCorporation.pdf

PI5C3253 Product details

Description

Pericom Semiconductor’s PI5C3253 is a Dual 4:1 Multiplexer/ demultiplexer with three-state outputs that is pinout compatible with the PI74FCT253T, 74F253, and 74ALS/AS/LS 253.

Features

Near-Zero propagation delay.
5Ω switches connect inputs to outputs.
Direct bus connection when switches are ON.
Ultra Low Quiescent Power (0.2µA Typical).
Ideally suited for notebook.
