PI5C32X384 - 20-Bit 2-Port Bus Switch

Pericom Semiconductor Corporation

📥 Download Datasheet

PI5C32X384 Datasheet Preview — Preview of PI5C32X384 PDF

Datasheet Details

Part number	PI5C32X384
Manufacturer	Pericom Semiconductor Corporation
File Size	327.05 KB
Description	20-Bit 2-Port Bus Switch
Datasheet	PI5C32X384_PericomSemiconductorCorporation.pdf

PI5C32X384 Product details

Description

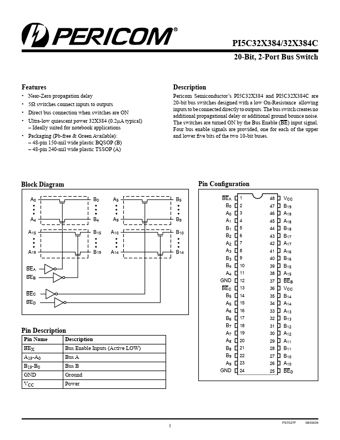

Pin Name Description BEX Bus Enable Inputs (Active LOW) A19-A0 Bus A B19-B0 Bus B GND Ground VCC Power PI5C32X384/32X384C 20-Bit, 2-Port Bus Switch Description Pericom Semiconductor’s PI5C32X384 and PI5C32X384C are 20-bit bus switches designed with a low On-Resistance allowing inputs to be connected directly to outputs.The bus switch creates no additional propagational delay or additional ground bounce noise.The switches are turned ON by the Bus Enable (BE) input signal.Four bus en

Features

Near-Zero propagation delay.
5Ω switches connect inputs to outputs.
Direct bus connection when switches are ON.
Ultra-low quiescent power 32X384 (0.2µA typical).
Ideally suited for notebook.
