PI74HSTL1212 - 24-Bit/ 1.8V to 3.3V Bi_Directional Level Shifting Transcciver

Pericom Semiconductor Corporation

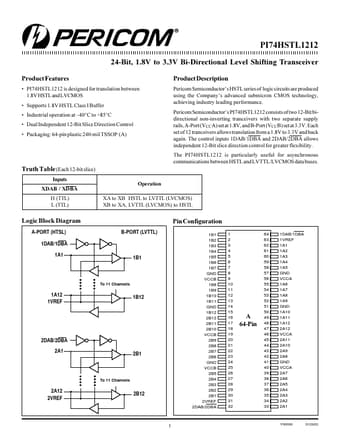

PI74HSTL1212 Datasheet Preview — Preview of PI74HSTL1212 PDF

Datasheet Details

Part number	PI74HSTL1212
Manufacturer	Pericom Semiconductor Corporation
File Size	115.62 KB
Description	24-Bit/ 1.8V to 3.3V Bi_Directional Level Shifting Transcciver
Datasheet	PI74HSTL1212_PericomSemiconductorCorporation.pdf

PI74HSTL1212 Product details

Description

Pericom Semiconductors HSTL series of logic circuits are produced using the Companys advanced submicron CMOS technology, achieving industry leading performance.

Features

PI74HSTL1212 is designed for translation between 1.8V HSTL and LVCMOS Supports 1.8V HSTL Class I Buffer Industrial operation at 40°C to +85°C Dual Independent 12-Bit Slice Direction Control Packaging: 64-pin plastic 240-mil TSSOP (A) Product.
