PI74ALVC162835 - 16-Bit Universal Bus Driver

Name: PI74ALVC162835
SKU: PI74ALVC162835-629068

Pericom Semiconductor Corporation

📥 Download Datasheet

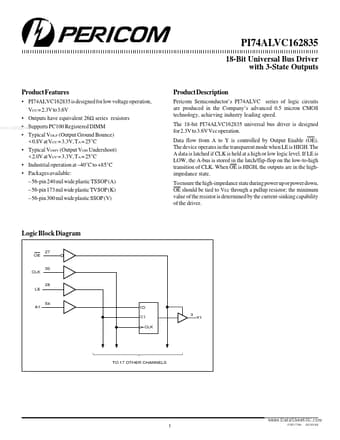

PI74ALVC162835 Datasheet Preview — Preview of PI74ALVC162835 PDF

Datasheet Details

Part number	PI74ALVC162835
Manufacturer	Pericom Semiconductor Corporation
File Size	183.74 KB
Description	16-Bit Universal Bus Driver
Datasheet	PI74ALVC162835_PericomSemiconductorCorporation.pdf

PI74ALVC162835 Product details

Description

Pericom Semiconductor’s PI74ALVC series of logic circuits are produced in the Company’s advanced 0.5 micron CMOS technology, achieving industry leading speed.

Features

PI74ALVC162835 is designed for low voltage operation, VCC = 2.3V to 3.6V.
Outputs have equivalent 26Ω series resistors.
Supports PC100 Registered DIMM www. DataSheet4U. com.
Typical VOLP (Output Ground Bounce) < 0.8V at VCC = 3.3V, TA = 25°C.
Typical VOHV (Output VOH Undershoot) < 2.0V at VCC = 3.3V, TA = 25°C.
Industrial operation at.
40°C to +85°C.
Packages available:.
56-pin 240 mil wide plastic TSSOP (A).
