PI74ALVC162835FD - 16-Bit Universal Bus Driver

Description

Pericom Semiconductor’s PI74ALVC series of logic circuits are produced using the Company’s advanced 0.5 micron CMOS technology, achieving industry leading speed.

The 18-bit PI74ALVC162835FD universal bus driver is designed for 2.3V to 3.6V VCC operation.

Features

  • • PI74ALVC162835FD is designed for low voltage operation, VCC = 2.3V to 3.6V • Data inputs have clamp diodes to VCC • Outputs have equivalent 26Ω series resistors www. DataSheet4U. com • Supports PC133 Registered DIMM • Typical VOLP (Output Ground Bounce) < 0.8V at VCC = 3.3V, TA = 25°C • Typical VOHV (Output VOH Undershoot) < 2.0V at VCC = 3.3V, TA = 25°C • Industrial operation at –40°C to +85°C • Packages available: – 56-pin 240 mil wide plastic TSSOP (A) – 56-pin 173 mil wide plastic TVSOP (K6).

📥 Download Datasheet

Datasheet preview – PI74ALVC162835FD

Datasheet Details

Part number PI74ALVC162835FD
Manufacturer Pericom Semiconductor Corporation
File Size 305.35 KB
Description 16-Bit Universal Bus Driver
Datasheet download datasheet PI74ALVC162835FD Datasheet
Additional preview pages of the PI74ALVC162835FD datasheet.

📁 Similar Datasheet

  • PI74ALVCH1622601 - 18-Bit Universal Bus Transceiver With 3-State Outputs (ETC)
  • PI74ALVCH16500 - 18-Bit Universal Bus Transceiver (Pericom Semiconductor)
  • PI74ALVCH16501 - 18-Bit Universal Bus Transceiver (Pericom Semiconductor)
  • PI74ALVCH16721 - 3.3V 20-Bit Flip-Flop (Pericom Semiconductor)
  • PI74AUC16244 - 1.8V 16-Bit Buffer/Driver (Pericom Semiconductor)
  • PI74AUC164245 - 16-Bit 0.8V to 2.7V Scaled Configurable Level Shifting Transceiver (Pericom Semiconductor)
  • PI74AVC+164245 - 16-BIT 1.8-2.5V TO 3.3V LEVEL SHIFTING TRANSCEIVER WITH 3-STATE OUTPUTS (ETC)
  • PI74AVC164245 - 16-BIT 1.8-2.5V TO 3.3V LEVEL SHIFTING TRANSCEIVER WITH 3-STATE OUTPUTS (ETC)
  • PI74AVC164245A - 16-BIT 1.8-2.5V TO 3.3V LEVEL SHIFTING TRANSCEIVER WITH 3-STATE OUTPUTS (ETC)
  • PI74AVC164245AA - 16-BIT 1.8-2.5V TO 3.3V LEVEL SHIFTING TRANSCEIVER WITH 3-STATE OUTPUTS (ETC)
Other Datasheets by Pericom Semiconductor Corporation

Full PDF Text Transcription

Click to expand full text

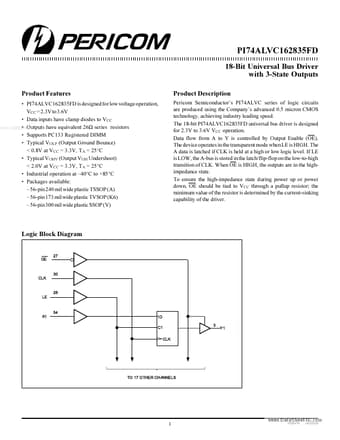

12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567890123456789012123456789012 12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567890123456789012123456789012 12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567890123456789012123456789012 PI74ALVC162835FD 18-Bit Universal Bus Driver with 3-State Outputs Product Features • PI74ALVC162835FD is designed for low voltage operation, VCC = 2.3V to 3.6V • Data inputs have clamp diodes to VCC • Outputs have equivalent 26Ω series resistors www.DataSheet4U.com • Supports PC133 Registered DIMM • Typical VOLP (Output Ground Bounce) < 0.8V at VCC = 3.
