PI74ALVC162334 - 16-Bit Universal Bus Driver

Name: PI74ALVC162334
SKU: PI74ALVC162334-629065

Pericom Semiconductor Corporation

📥 Download Datasheet

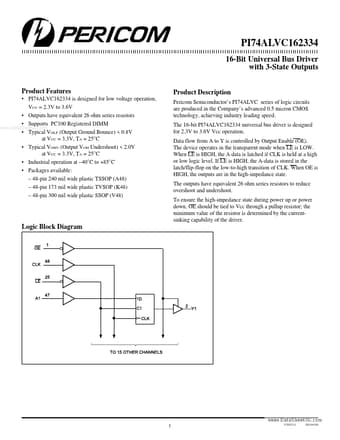

PI74ALVC162334 Datasheet Preview — Preview of PI74ALVC162334 PDF

Datasheet Details

Part number	PI74ALVC162334
Manufacturer	Pericom Semiconductor Corporation
File Size	101.68 KB
Description	16-Bit Universal Bus Driver
Datasheet	PI74ALVC162334_PericomSemiconductorCorporation.pdf

PI74ALVC162334 Product details

Description

Pericom Semiconductor’s PI74ALVC series of logic circuits are produced in the Company’s advanced 0.5 micron CMOS technology, achieving industry leading speed.

Features

PI74ALVC162334 is designed for low voltage operation, VCC = 2.3V to 3.6V.
Outputs have equivalent 26 ohm series resistors.
Supports PC100 Registered DIMM www. DataSheet4U. com.
Typical VOLP (Output Ground Bounce) < 0.8V at VCC = 3.3V, TA = 25°C.
Typical VOHV (Output VOH Undershoot) < 2.0V at VCC = 3.3V, TA = 25°C.
Industrial operation at.
40°C to +85°C.
Packages available:.
48-pin 240 mil wide plastic TSSOP (A48).
