16TQC33MYFB, 16TQC10M - Conductive Polymer Tantalum Solid Capacitors

Name: 16TQC33MYFB
SKU: 16TQC33MYFB-1152507

Panasonic

The 16TQC33MYFB by Panasonic is a Conductive Polymer Tantalum Solid Capacitors. Below is the official datasheet preview.

Datasheet Details

Part number	16TQC33MYFB, 16TQC10M
Manufacturer	Panasonic
File Size	45.29 KB
Description	Conductive Polymer Tantalum Solid Capacitors
Datasheet	16TQC10M-Panasonic.pdf
Note	This datasheet PDF includes multiple part numbers: 16TQC33MYFB, 16TQC10M. Please refer to the document for exact specifications by model.

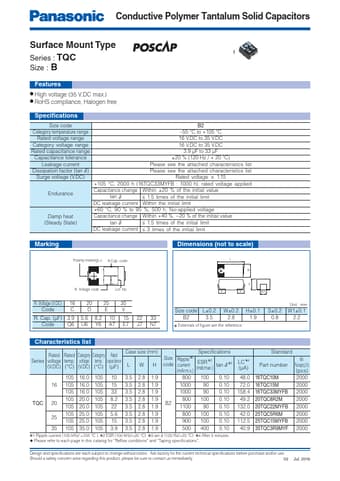

Additional preview pages of the 16TQC33MYFB datasheet.

High voltage (35 V. DC max. ).
RoHS compliance, Halogen free Specifications Size code B2 Category temperature range.
55 °C to +105 °C Rated voltage range 16 V. DC to 35 V. DC Category voltage range 16 V. DC to 35 V. DC Rated capacitance range 3.9 μF to 33 μF Capacitance tolerance ±20 % (120 Hz / + 20 °C) Leakage current Please see the attached characteristics list Dissipation factor (tan d) Please see the attached characteristics list Surge voltage (V. DC) Rated vo.
