16T - TRIACs

nELL

The 16T by nELL is a TRIACs. Below is the official datasheet preview.

📥 Download Datasheet

16T TRIACs by nELL - Datasheet Preview — Official preview page of the **16T** TRIACs datasheet (nELL).

Datasheet Details

Part number	16T
Manufacturer	nELL
File Size	637.26 KB
Description	TRIACs
Datasheet	16T-nELL.pdf

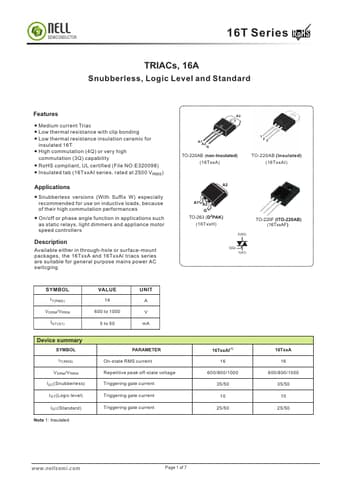

Additional preview pages of the 16T datasheet.

16T Product details

Description

Available either in through-hole or surface-mount packages, the 16TxxA and 16TxxAl triacs series are suitable for general purpose mains power AC switcging A2 A1 A2 G TO-220AB (non-Insulated) (16TxxA) 12 3 TO-220AB (lnsulated) (16TxxAI) A2 A1 A2 G TO-263 (D2PAK) (16TxxH) TO-220F (ITO-220AB) (16TxxAF) 2(A2) 3(G) 1(A1) SYMBOL IT(RMS) VDRM/VRRM IGT(Q1) VALUE 16 600 to 1000 5 to 50 UNIT A V mA Device summary SYMBOL lT(RMS) VDRM/VRRM IGT(Snubberless) IGT(Logic level) IGT(Standard) Note 1: I

Features

Medium current Triac.
Low thermal resistance with clip bonding.
Low thermal resistance insulation ceramic for insulated 16T.
High commutation (4Q) or very high commutation (3Q) capability.
RoHS compliant, UL certified (File NO:E320098).
Insulated tab (16TxxAI series, rated at 2500 VRMS).
