16TDC33MYFB - Conductive Polymer Tantalum Solid Capacitors

Name: 16TDC33MYFB
SKU: 16TDC33MYFB-1415609

Panasonic

The 16TDC33MYFB by Panasonic is a Conductive Polymer Tantalum Solid Capacitors. Below is the official datasheet preview.

Datasheet Details

Part number	16TDC33MYFB
Manufacturer	Panasonic
File Size	446.71 KB
Description	Conductive Polymer Tantalum Solid Capacitors
Datasheet	16TDC33MYFB-Panasonic.pdf

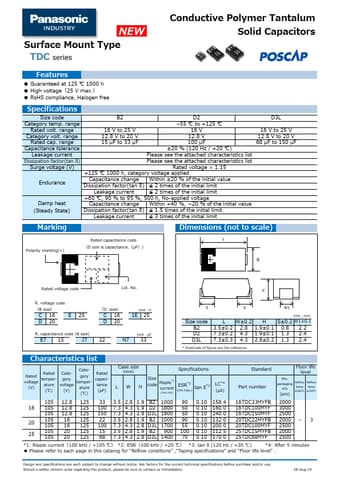

Additional preview pages of the 16TDC33MYFB datasheet.

Guaranteed at 125 ℃ 1000 h.
High voltage（25 V max. ）.
RoHS compliance, Halogen free Specifications Size code B2 D2 D3L Category temp. range.
55 ℃ to +125 ℃ Rated volt. range 16 V to 25 V 16 V 16 V to 25 V Category volt. range 12.8 V to 20 V 12.8 V 12.8 V to 20 V Rated cap. range 15 μF to 33 μF 100 μF 68 μF to 150 μF Capacitance tolerance ±20 % (120 Hz / +20 ℃) Leakage current Please see the attached characteristics list Dissipation factor(tan δ) Pl.
