16TDC100MYF, 16TDC33MYFB - Conductive Polymer Tantalum Solid Capacitors

Name: 16TDC100MYF
SKU: 16TDC100MYF-1415610

Panasonic

The 16TDC100MYF by Panasonic is a Conductive Polymer Tantalum Solid Capacitors. Below is the official datasheet preview.

Datasheet Details

Part number	16TDC100MYF, 16TDC33MYFB
Manufacturer	Panasonic
File Size	446.71 KB
Description	Conductive Polymer Tantalum Solid Capacitors
Datasheet	16TDC33MYFB-Panasonic.pdf
Note	This datasheet PDF includes multiple part numbers: 16TDC100MYF, 16TDC33MYFB. Please refer to the document for exact specifications by model.

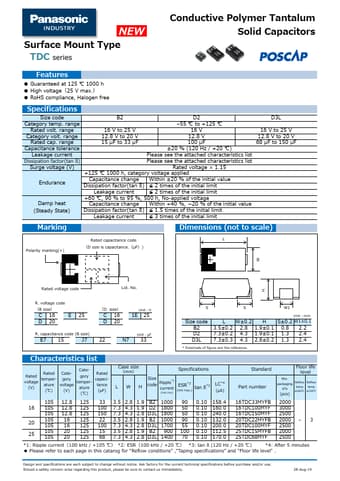

Additional preview pages of the 16TDC100MYF datasheet.

Guaranteed at 125 ℃ 1000 h.
High voltage（25 V max. ）.
RoHS compliance, Halogen free Specifications Size code B2 D2 D3L Category temp. range.
55 ℃ to +125 ℃ Rated volt. range 16 V to 25 V 16 V 16 V to 25 V Category volt. range 12.8 V to 20 V 12.8 V 12.8 V to 20 V Rated cap. range 15 μF to 33 μF 100 μF 68 μF to 150 μF Capacitance tolerance ±20 % (120 Hz / +20 ℃) Leakage current Please see the attached characteristics list Dissipation factor(tan δ) Pl.
