SPTJ10R16H - 100V N-Channel MOSFET

PIP

The SPTJ10R16H by PIP is a 100V N-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

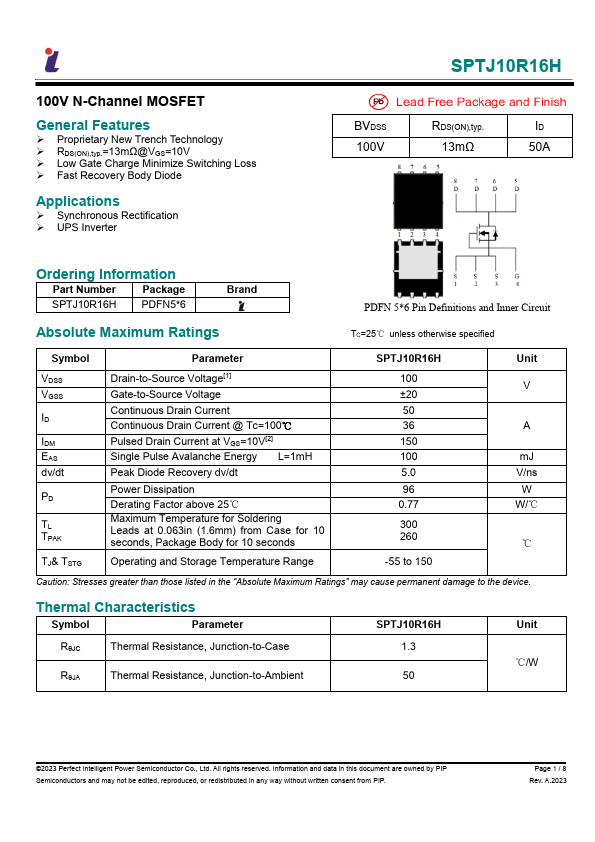

SPTJ10R16H 100V N-Channel MOSFET by PIP - Datasheet Preview — Official preview page of the SPTJ10R16H 100V N-Channel MOSFET datasheet (PIP).

Datasheet Details

Part number	SPTJ10R16H
Manufacturer	PIP
File Size	1.29 MB
Description	100V N-Channel MOSFET
Datasheet	SPTJ10R16H-PIP.pdf

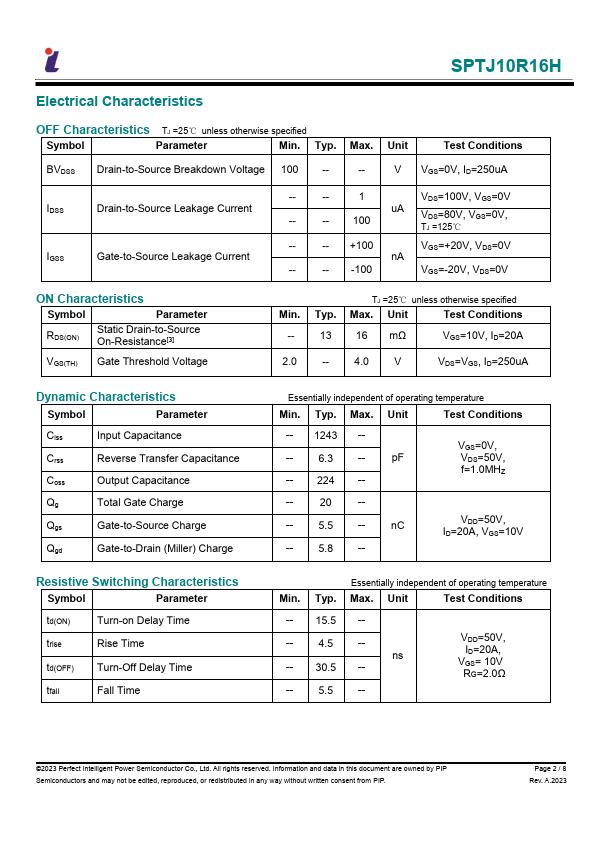

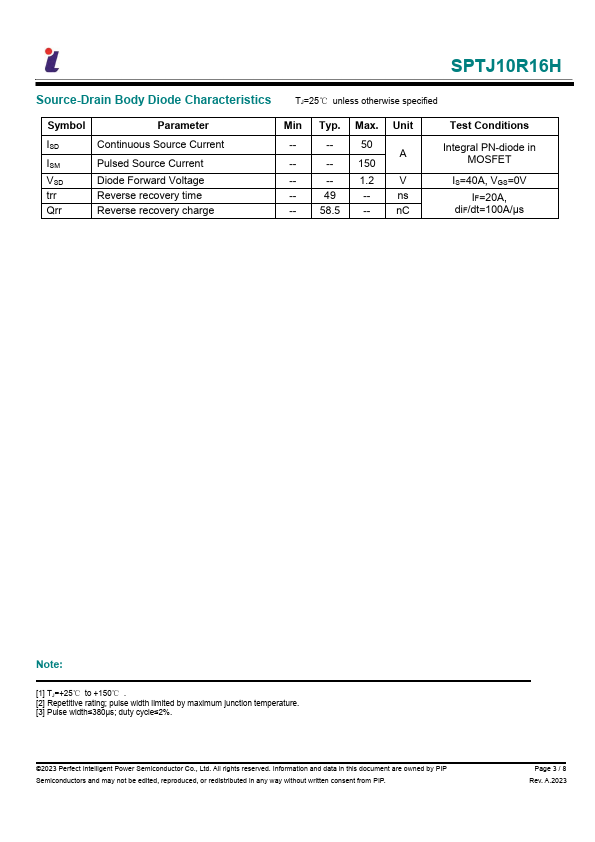

Additional preview pages of the SPTJ10R16H datasheet.

SPTJ10R16H Product details

Features

Proprietary New Trench Technology.
RDS(ON),typ. =13mΩ@VGS=10V.
Low Gate Charge Minimize Switching Loss.
Fast Recovery Body Diode.
