SPTJ10R10B - 100V N-Channel MOSFET

PIP

The SPTJ10R10B by PIP is a 100V N-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

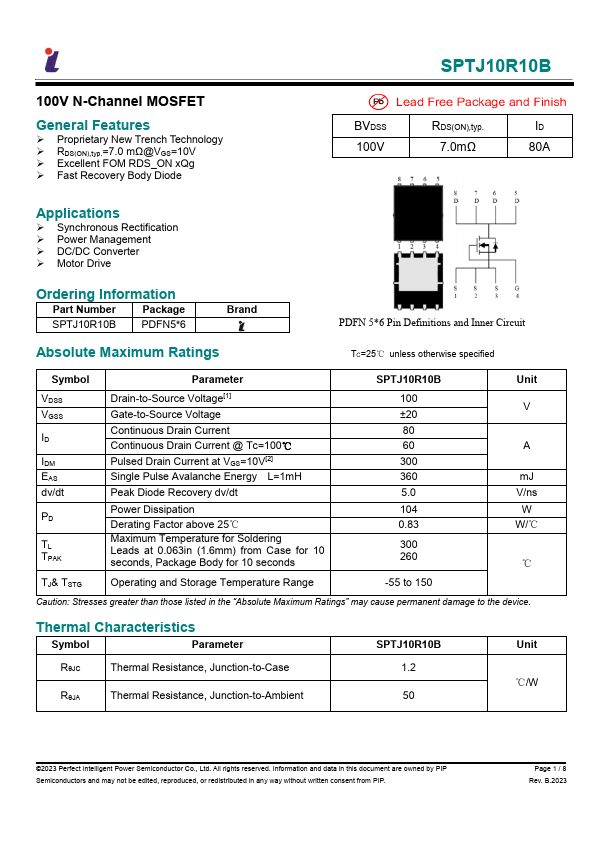

SPTJ10R10B 100V N-Channel MOSFET by PIP - Datasheet Preview — Official preview page of the SPTJ10R10B 100V N-Channel MOSFET datasheet (PIP).

Datasheet Details

Part number	SPTJ10R10B
Manufacturer	PIP
File Size	1.12 MB
Description	100V N-Channel MOSFET
Datasheet	SPTJ10R10B-PIP.pdf

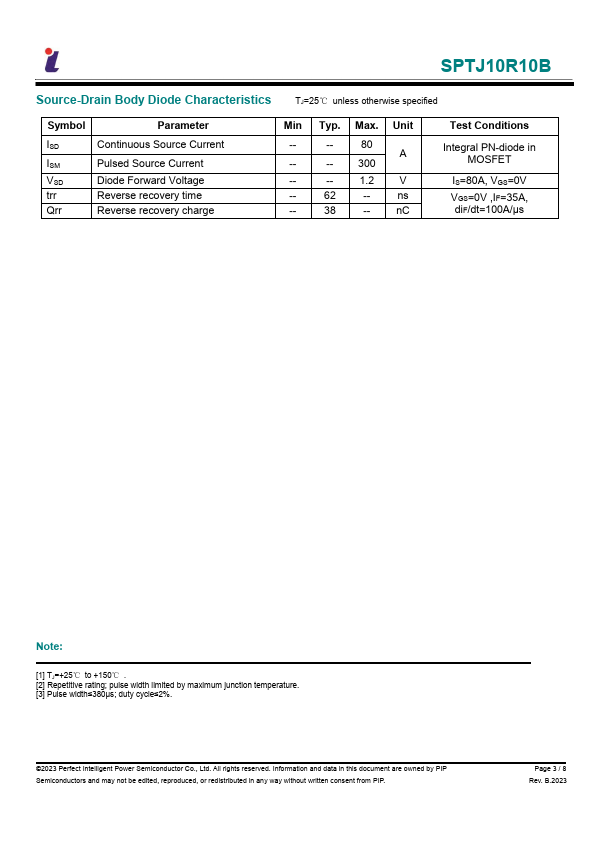

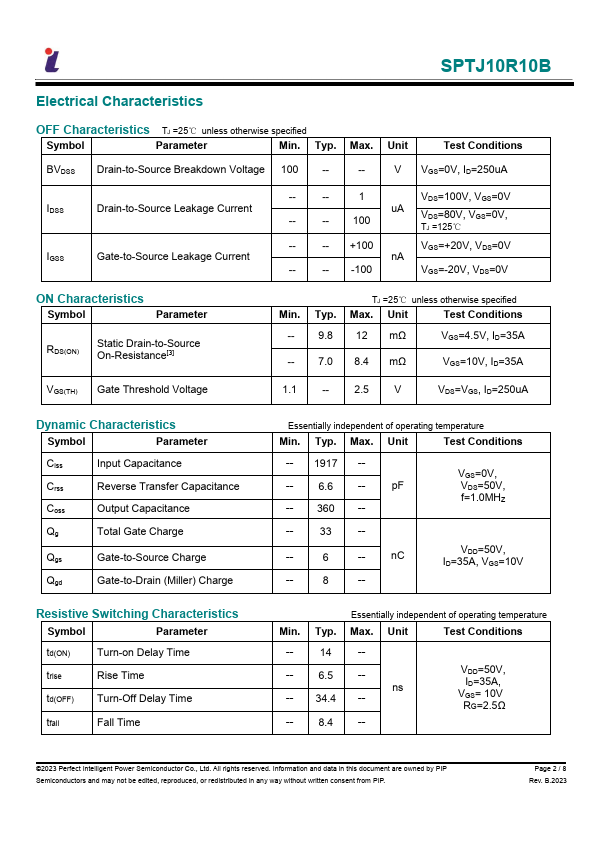

Additional preview pages of the SPTJ10R10B datasheet.

SPTJ10R10B Product details

Features

Proprietary New Trench Technology.
RDS(ON),typ. =7.0 mΩ@VGS=10V.
Excellent FOM RDS_ON xQg.
Fast Recovery Body Diode SPTJ10R10B BVDSS 100V RDS(ON),typ. 7.0mΩ ID 80A.
