SPTD04R014E - 40V N-Channel MOSFET

PIP

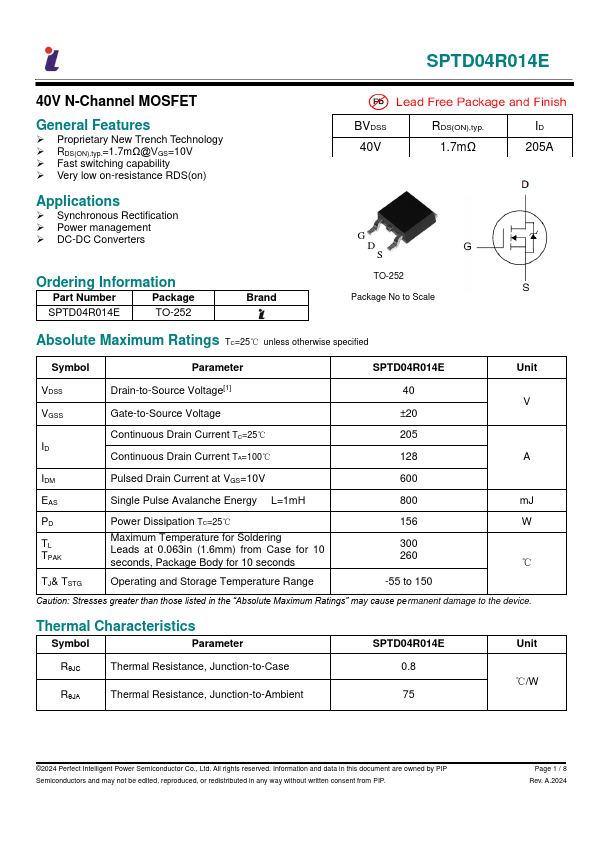

The SPTD04R014E by PIP is a 40V N-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

SPTD04R014E 40V N-Channel MOSFET by PIP - Datasheet Preview — Official preview page of the SPTD04R014E 40V N-Channel MOSFET datasheet (PIP).

Datasheet Details

Part number	SPTD04R014E
Manufacturer	PIP
File Size	823.82 KB
Description	40V N-Channel MOSFET
Datasheet	SPTD04R014E-PIP.pdf

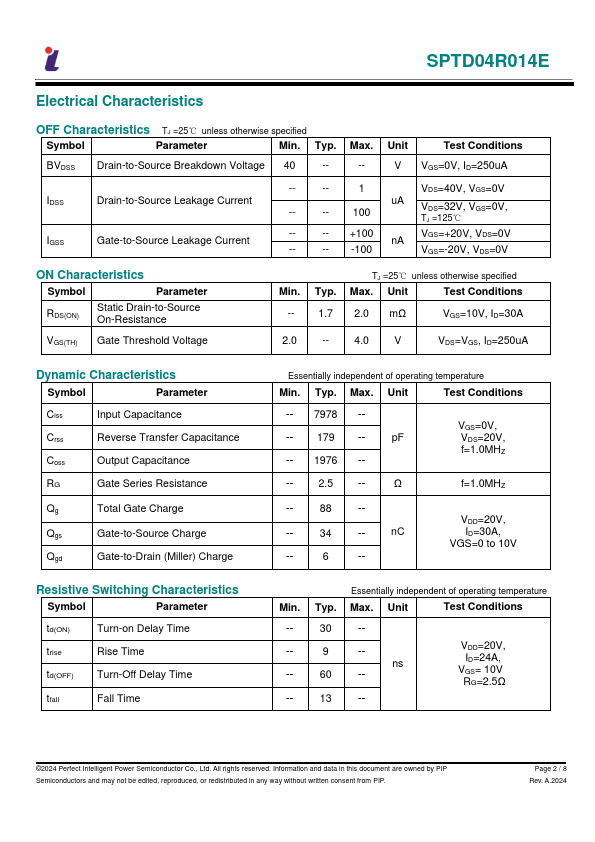

Additional preview pages of the SPTD04R014E datasheet.

SPTD04R014E Product details

Features

Proprietary New Trench Technology.
RDS(ON),typ. =1.7mΩ@VGS=10V.
Fast switching capability.
Very low on-resistance RDS(on) BVDSS 40V RDS(ON),typ. 1.7mΩ ID 205A.
