SPTA60R160E - 600V N-ch Multi-Epi Super-Junction MOSFET

PIP

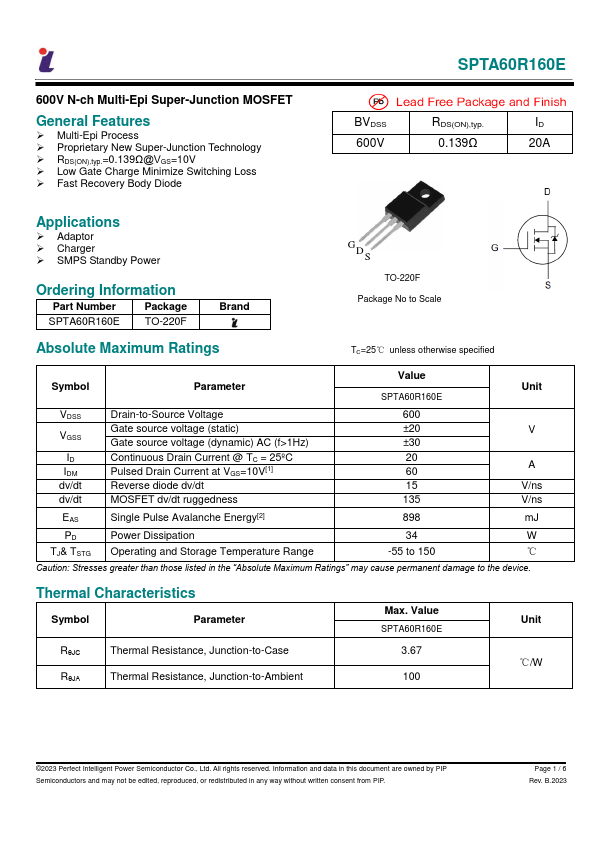

The SPTA60R160E by PIP is a 600V N-ch Multi-Epi Super-Junction MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

SPTA60R160E 600V N-ch Multi-Epi Super-Junction MOSFET by PIP - Datasheet Preview — Official preview page of the SPTA60R160E 600V N-ch Multi-Epi Super-Junction MOSFET datasheet (PIP).

Datasheet Details

Part number	SPTA60R160E
Manufacturer	PIP
File Size	538.58 KB
Description	600V N-ch Multi-Epi Super-Junction MOSFET
Datasheet	SPTA60R160E-PIP.pdf

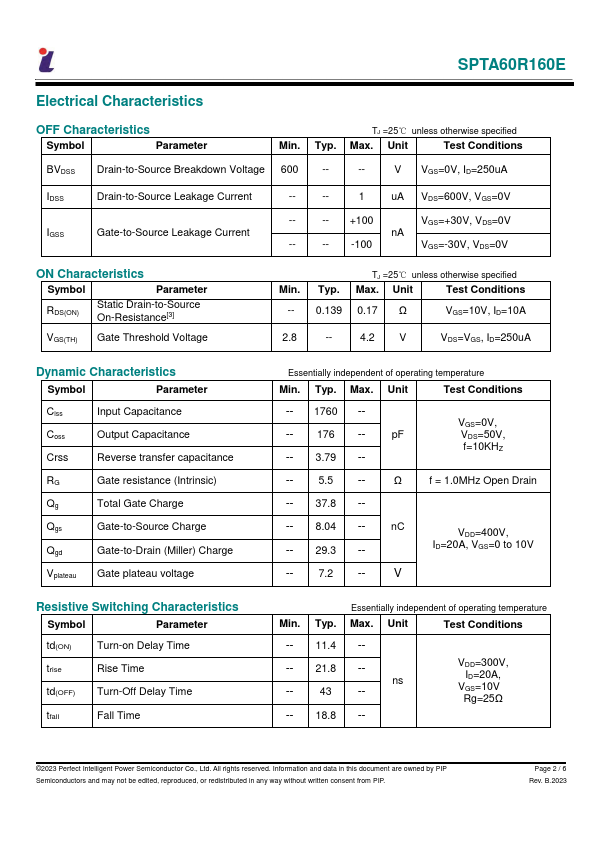

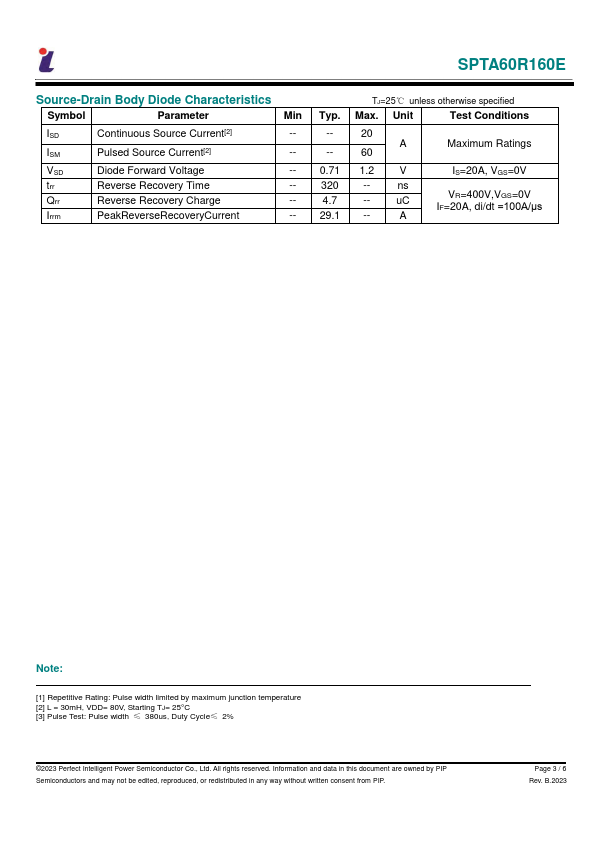

Additional preview pages of the SPTA60R160E datasheet.

SPTA60R160E Product details

Features

Multi-Epi Process.
Proprietary New Super-Junction Technology.
RDS(ON),typ. =0.139Ω@VGS=10V.
Low Gate Charge Minimize Switching Loss.
Fast Recovery Body Diode SPTA60R160E BVDSS 600V RDS(ON),typ. 0.139Ω ID 20A.
