EPC1015H, EPC1015 - Ethernet DC-DC Converter

PCA Electronics

Datasheet Details

Part number	EPC1015H, EPC1015
Manufacturer	PCA Electronics
File Size	71.80 KB
Description	Ethernet DC-DC Converter
Datasheet	EPC1015_PCAElectronics.pdf
Note	This datasheet PDF includes multiple part numbers: EPC1015H, EPC1015. Please refer to the document for exact specifications by model.

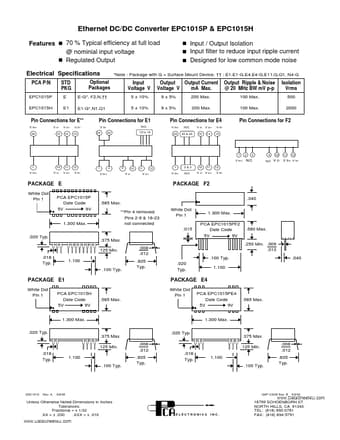

70 % Typical efficiency at full load @ nominial input voltage Regulated Output Input / Output Isolation Input filter to reduce input ripple current Designed for low common mode noise Electrical Specifications PCA P/N EPC1015P EPC1015H STD PKG E E1 Optional Packages E-G.
, F2,N,†† E1-G.
,N1,Q1.
Note : Package with G = Surface Mount Device, †† : E1,E1-G,E4,E4-G,E11,Q,Q1, N4-G Input Voltage V 5 ± 10% 5 ± 10% Output Voltage V 9 ± 5% 9 ± 5% Output Current mA Max. 200 Max. 200 Max. Output.
