EPC1011 - DC-DC Converter

PCA Electronics

📥 Download Datasheet

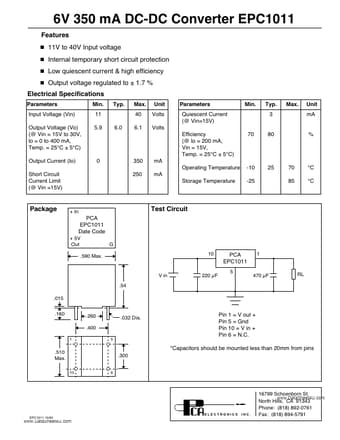

EPC1011 Datasheet Preview — Preview of EPC1011 PDF

Datasheet Details

Part number	EPC1011
Manufacturer	PCA Electronics
File Size	78.29 KB
Description	DC-DC Converter
Datasheet	EPC1011_PCAElectronics.pdf

EPC1011 Product details

Features

11V to 40V Input voltage Internal temporary short circuit protection Low quiescent current & high efficiency Output voltage regulated to ± 1.7 % Electrical Specifications Parameters Input Voltage (Vin) Output Voltage (Vo) (@ Vin = 15V to 30V, lo = 0 to 400 mA, Temp. = 25°C ± 5°C) Output Current (Io) Short Circuit Current Limit (@ Vin =15V) Min. 11 5.9 6.0 Typ. Max. 40 6.1 Unit Volts Volts Efficiency (@ lo = 200 mA, Vin = 15V, Temp. = 25°C ± 5°C) 0 350 250 mA Operating Temperature mA Storage Temp.
