EPC1010 - DC-DC Converter

PCA Electronics

📥 Download Datasheet

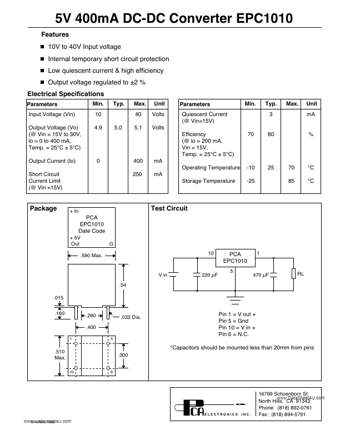

EPC1010 Datasheet Preview — Preview of EPC1010 PDF

Datasheet Details

Part number	EPC1010
Manufacturer	PCA Electronics
File Size	77.92 KB
Description	DC-DC Converter
Datasheet	EPC1010_PCAElectronics.pdf

EPC1010 Product details

Features

10V to 40V Input voltage Internal temporary short circuit protection Low quiescent current & high efficiency Output voltage regulated to ±2 % Electrical Specifications Parameters Input Voltage (Vin) Output Voltage (Vo) (@ Vin = 15V to 30V, lo = 0 to 400 mA, Temp. = 25°C ± 5°C) Output Current (Io) Short Circuit Current Limit (@ Vin =15V) Min. 10 4.9 5.0 Typ. Max. 40 5.1 Unit Volts Volts Efficiency (@ lo = 200 mA, Vin = 15V, Temp. = 25°C ± 5°C) 0 400 250 mA Operating Temperature mA Storage Tempera.
