OSG50R1K5FF, OSG50R1K5AF N-Channel Power MOSFET

Description

, OSG50R1K5AF/OSG50R1K5DF/OSG50R1K5FF/OSG50R1K5PF Enhancement Mode N-Channel Power MOSFET * General .
OSG50R1K5xF use advanced GreenMOSTM technology to provide low RDS(ON), low gate charge, fast switching and excellent avalanche characteristics.

📥 Download Datasheet

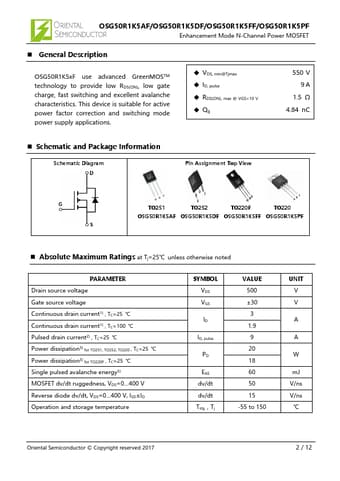

OSG50R1K5FF Datasheet Preview — This datasheet PDF includes multiple part numbers: OSG50R1K5FF, OSG50R1K5AF. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: OSG50R1K5FF, OSG50R1K5AF
Manufacturer: Oriental Semiconductor
File Size: 818.47 KB
Datasheet: OSG50R1K5AF-OrientalSemiconductor.pdf
Description: N-Channel Power MOSFET
Note: This datasheet PDF includes multiple part numbers: OSG50R1K5FF, OSG50R1K5AF.
Please refer to the document for exact specifications by model.

Applications

* VDS, min@Tjmax
* ID, pulse
* RDS(ON), max @ VGS=10 V
* Qg 550 V 9A 1.5 Ω 4.84 nC
* Schematic and Package Information Schematic Diagram Pin Assignment Top View TO251 TO252 TO220F TO220 OSG50R1K5AF OSG50R1K5DF OSG50R1K5FF OSG50R1K5PF
* Absolute Maximum Ratings at T
