OSG55R140HF, OSG55R140FF - N-Channel Power MOSFET

OSG55R140HF Datasheet Preview — This datasheet PDF includes multiple part numbers: OSG55R140HF, OSG55R140FF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	OSG55R140HF, OSG55R140FF
Manufacturer	Oriental Semiconductor
File Size	0.97 MB
Description	N-Channel Power MOSFET
Datasheet	OSG55R140FF-OrientalSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: OSG55R140HF, OSG55R140FF. Please refer to the document for exact specifications by model.

OSG55R140HF Product details

Description

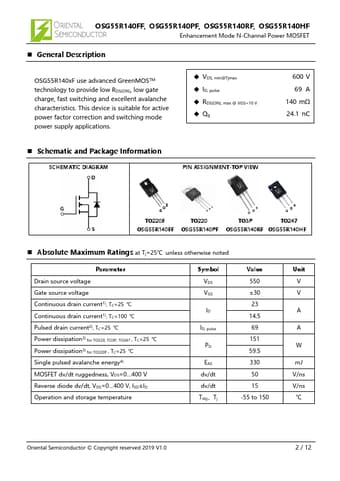

OSG55R140xF use advanced GreenMOSTM technology to provide low RDS(ON), low gate charge, fast switching and excellent avalanche characteristics. VDS, min@Tjmax ID, pulse RDS(ON), max @ VGS=10 V Qg 600 V 69 A 140 mΩ 24.1 nC Schematic and Package Information SCHEMATIC DIAGRAM PIN ASSIGNMENT-TOP VIEW TO220F TO220 TO3P TO247 OSG55R140FF OSG55R140PF OSG55R140
