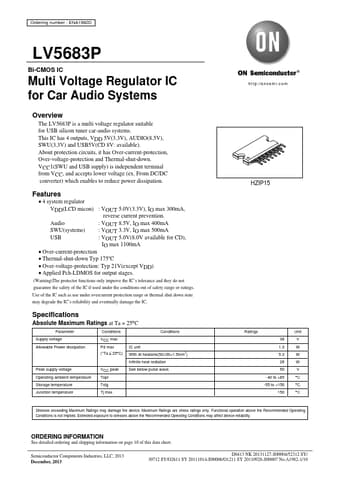

LV5683P - Multi Voltage Regulator

ON Semiconductor

Datasheet Details

4 system regulator VDD(LCD micon) : VOUT 5.0V(3.3V), IO max 300mA, reverse current prevention. Audio : VOUT 8.5V, IO max 400mA SWU(systems) : VOUT 3.3V, IO max 500mA USB : VOUT 5.0V(8.0V available for CD), IO max 1100mA.
Over-current-protection.
Thermal-shut-down Typ 175ºC.
Over-voltage-protection: Typ 21V(except VDD).
Applied Pch-LDMOS for output stages. (Warning)The protector functions only i.
