LV5680P - Multi-Power Supply

Sanyo Semicon Device

📥 Download Datasheet

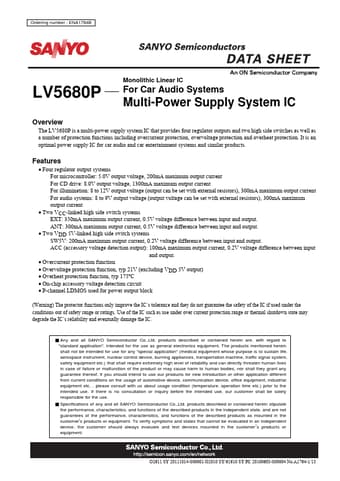

LV5680P Datasheet Preview — Preview of LV5680P PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LV5680P
Manufacturer	Sanyo Semicon Device
File Size	299.48 KB
Description	Multi-Power Supply
Datasheet	LV5680P_SanyoSemiconDevice.pdf

LV5680P Product details

Features

Four regulator output systems For microcontroller: 5.0V output voltage, 200mA maximum output current For CD drive: 8.0V output voltage, 1300mA maximum output current For illumination: 8 to 12V output voltage (output can be set with external resistors), 300mA maximum output current For audio systems: 8 to 9V output voltage (output voltage can be set with external resistors), 300mA maximum output current.
Two VCC-linked high side switch systems EXT: 350mA maximum output current,.
