LV56831P - Multi Voltage Regulator

Sanyo Semicon Device

📥 Download Datasheet

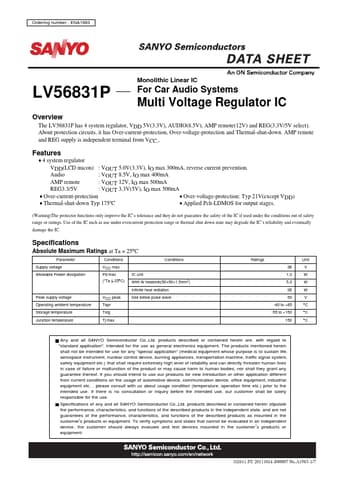

LV56831P Datasheet Preview — Preview of LV56831P PDF

Datasheet Details

Part number	LV56831P
Manufacturer	Sanyo Semicon Device
File Size	228.35 KB
Description	Multi Voltage Regulator
Datasheet	LV56831P_SanyoSemiconDevice.pdf

LV56831P Product details

Description

Equivalent Circuit - 8 VCC 2 14 3 AUDIO AUDIO output when AUDIO_EN = High, ON 8.5V/0.4A GND 8 VCC 3 14 4 5 N.C.VDD VDD output 5.0V, 3.3V/0.3A - GND 8 VCC 5 14 6 IKVDD VDD output voltage select OPEN : VDD = 5.0V GND : VDD = 3.3V GND 8 VCC 6 14 7 8 N.C.VCC VCC - GND 8 VCC 9 9 VCC1 VCC1 14 GND Continued on next page.No.A1983-5/7 Datasheet pdf - http://www.DataSheet4U.net/ www.DataSheet.co.kr LV56831P Continued from preceding page.Pin No.10 Pin name REG_EN REG output C

Features

4 system regulator VDD(LCD micon) : VOUT 5.0V(3.3V), IO max 300mA, reverse current prevention. Audio : VOUT 8.5V, IO max 400mA AMP remote : VOUT 12V, IO max 500mA REG3.3/5V : VOUT 3.3V(5V), IO max 500mA.
Over-current-protection.
Over-voltage-protection: Typ 21V(except VDD).
Applied Pch-LDMOS for output stages.
Thermal-shut-down Typ 175ºC (Warning)The protector functions only improve the IC’s tolerance and they do not guarantee the safety of the IC i.
