LV5686PVC - Multi-Power Supply

ON Semiconductor

📥 Download Datasheet

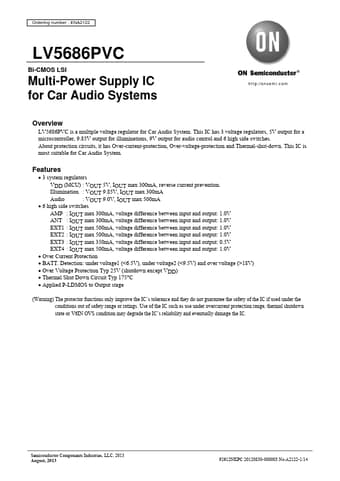

LV5686PVC Datasheet Preview — Preview of LV5686PVC PDF

Datasheet Details

Part number	LV5686PVC
Manufacturer	ON Semiconductor
File Size	178.55 KB
Description	Multi-Power Supply
Datasheet	LV5686PVC-ONSemiconductor.pdf

LV5686PVC Product details

Description

Recommended value Note C1, C2, C3, C10, C11, C12 C4, C8, C13 output stabilization capacitor for high-side switches output stabilization capacitor greater than 2.2μF greater than10μF ( 1) C5, C9, C14 output stabilization capacitor greater than0.22μF ( 1) Ceramic capacitor C6 Capacitor for bypass power supply greater than 100μF Make sure to implement close to C7 Capacitor for oscillation protector greater than 0.22μF VCC and GND.D1, D2, D3, D4 Internal device protector d

Features

3 system regulators VDD (MCU) : VOUT 5V, IOUT max 300mA, reverse current prevention. Illumination : VOUT 9.85V, IOUT max 300mA Audio : VOUT 9.0V, IOUT max 500mA.
6 high side switches AMP : IOUT max 300mA, voltage difference between input and output: 1.0V ANT : IOUT max 300mA, voltage difference between input and output: 1.0V EXT1 : IOUT max 500mA, voltage difference between input and output: 1.0V EXT2 : IOUT max 500mA, voltage difference between input and output: 1.0V E.
